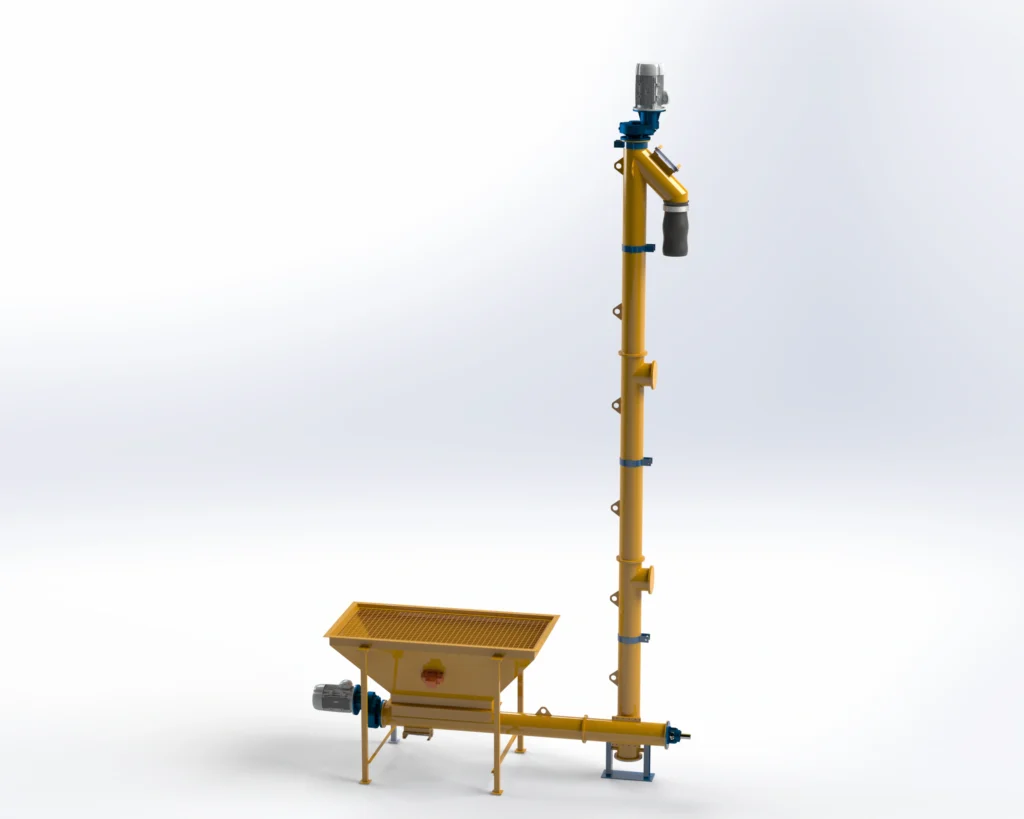

Vertical Screw Conveyor
A tubular casing and a screw on a central pipe, taking material straight up between floors or into a silo, in the footprint of the tube.
Vertical lift 90°
Lifts
Powders and free-flowing bulk materials, vertically
Casing
Tubular and fully enclosed
Screw
Continuous flight welded on a central pipe
Drive
Flange-mounted reduction gearbox with TEFC squirrel cage motor
Lifting Powder Without Giving Up the Floor Space
Cosben Engineering designs and manufactures vertical screw conveyors for efficient upward movement of powders and bulk materials in industrial plants. These systems are built specifically for applications where material needs to be lifted vertically while maintaining a compact and enclosed setup.
Used as a vertical screw elevator or vertical transfer system, the equipment is suitable for handling materials such as cement, fly ash, micro silica, sand, dolomite, gypsum, and other free-flowing powders. The design supports stable conveying even in processes where continuous and controlled material flow is required.
The system consists of a tubular enclosed casing with a rotating screw, allowing material to be lifted at a 90° angle. This makes it a practical solution for transferring material between floors, feeding elevated equipment, or loading into silos – especially in plants where space is limited.
At a Glance
Lifts
Casing
Screw
Drive
Key Features & Benefits
Five points, and the second is the reason the machine exists: floor space.
01
Efficient Vertical Conveying
Designed for lifting powders and bulk materials vertically, ideal for multi-level plant layouts.
02
Compact and Space-Saving Design
A compact vertical screw conveyor setup minimizes floor space while enabling efficient material transfer.
03
Dust-Free Enclosed Operation
Fully enclosed systems ensure clean handling of powders with minimal dust emission.
04
Customizable for Plant Requirements
Available in different sizes and configurations to suit specific material handling needs.
05
Reliable Industrial Construction
Built for continuous operation in demanding environments with consistent performance.
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Salient Features
What the screw, the drive, the bearings and the electricals are built to.
- Material Compatibility. Suitable for powders such as cement, fly ash, micro silica, sand, dolomite, gypsum, stucco, and similar materials.
- Optimized Screw Design. Continuous flight welded on a central pipe, designed to support efficient vertical lifting with stable flow.
- Robust Drive System. Equipped with flange-mounted reduction gearbox and TEFC squirrel cage induction motor for reliable operation.
- Bearings & Sealing Arrangement. Includes end bearings with application-specific sealing to reduce wear and improve equipment life.
- Flexible Electrical Configuration. Motors available in multiple voltage and frequency options as per regional standards.

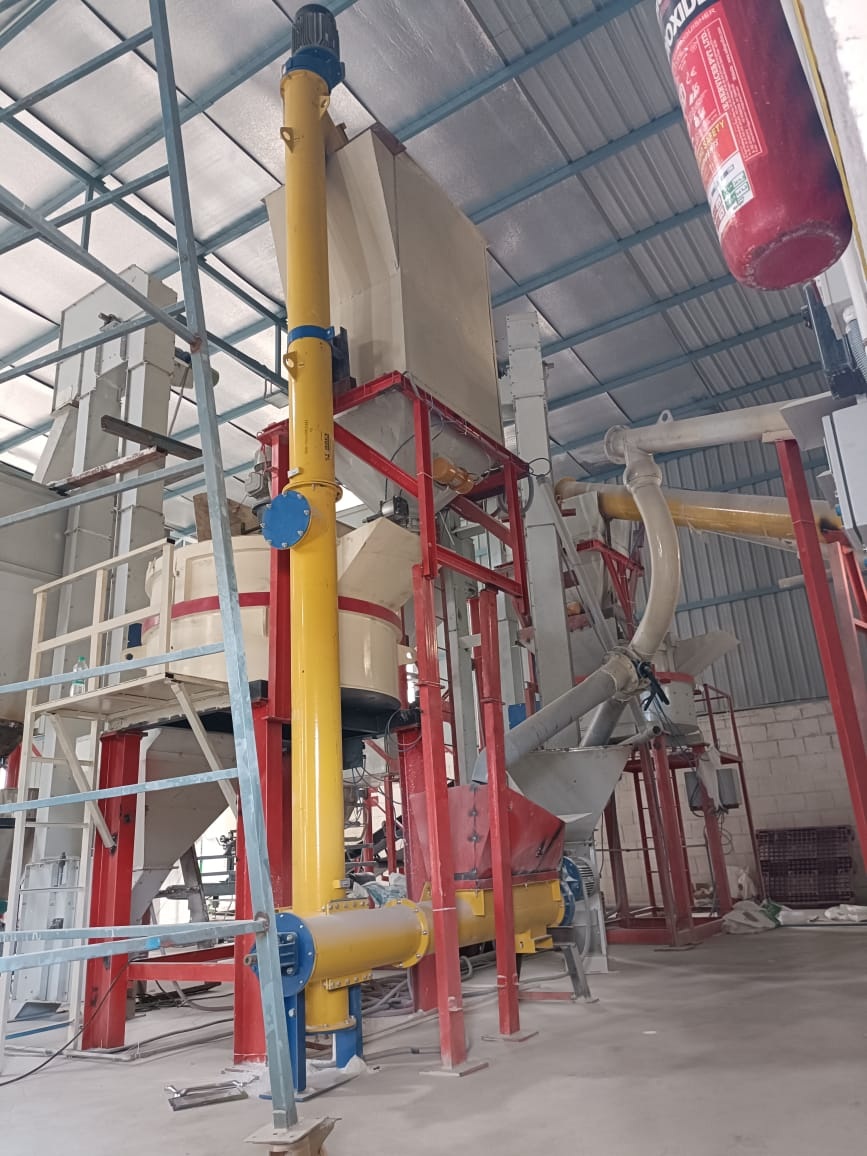

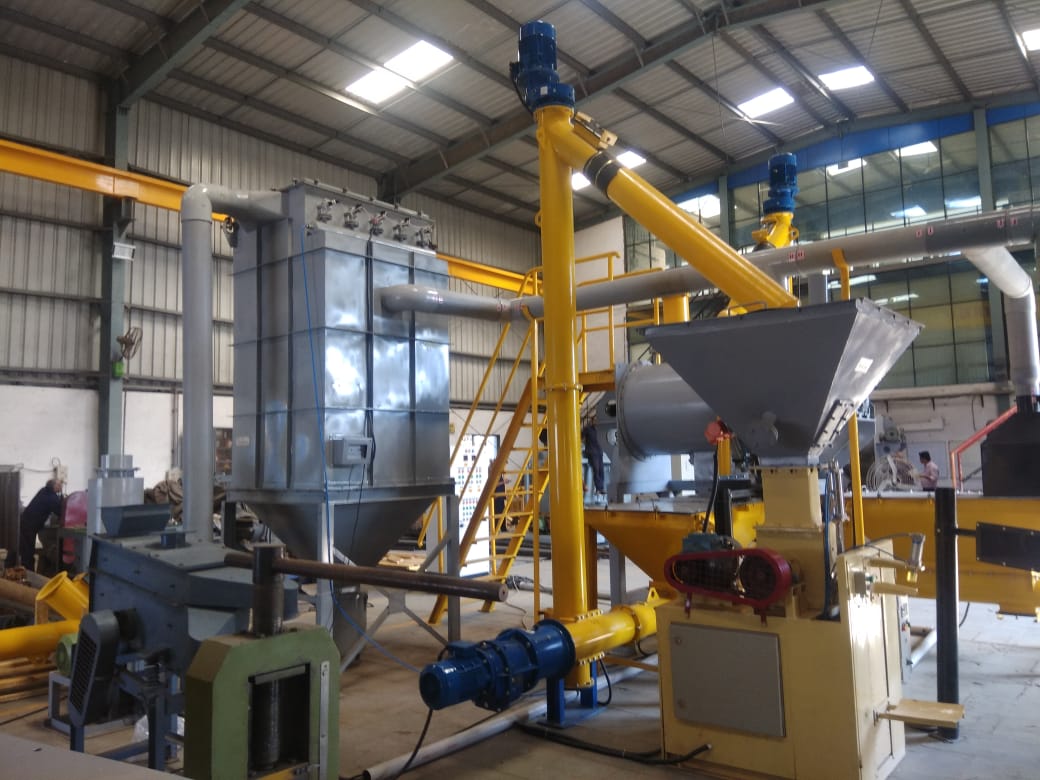

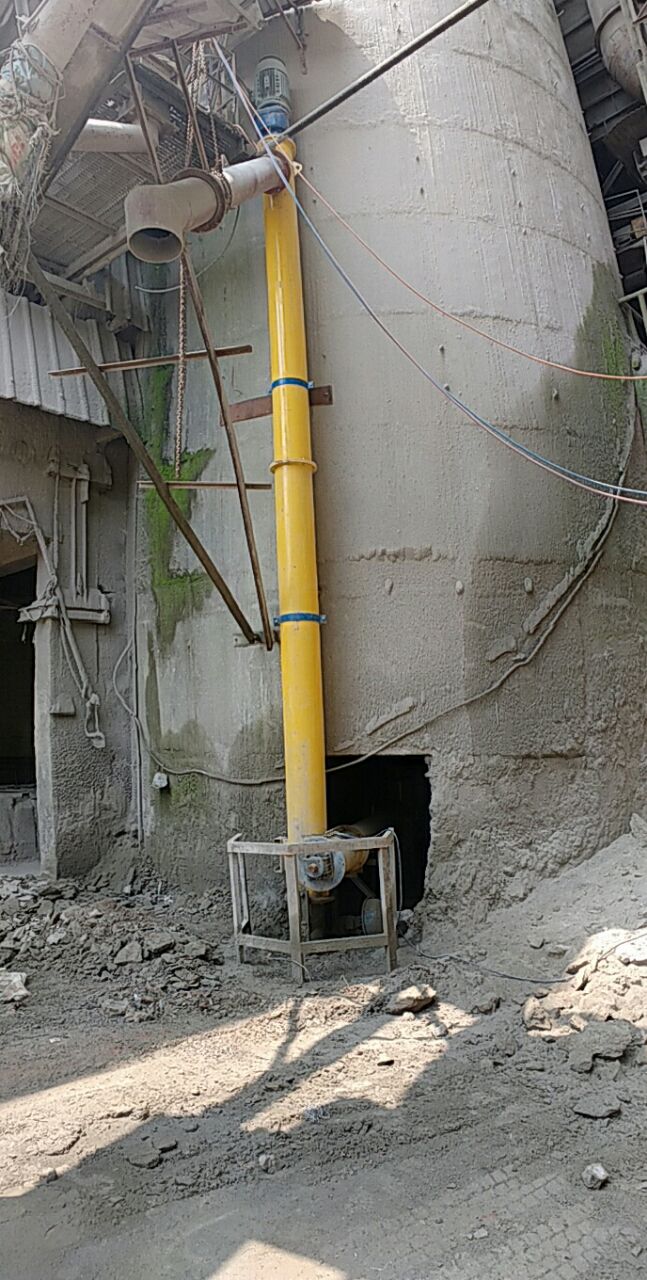

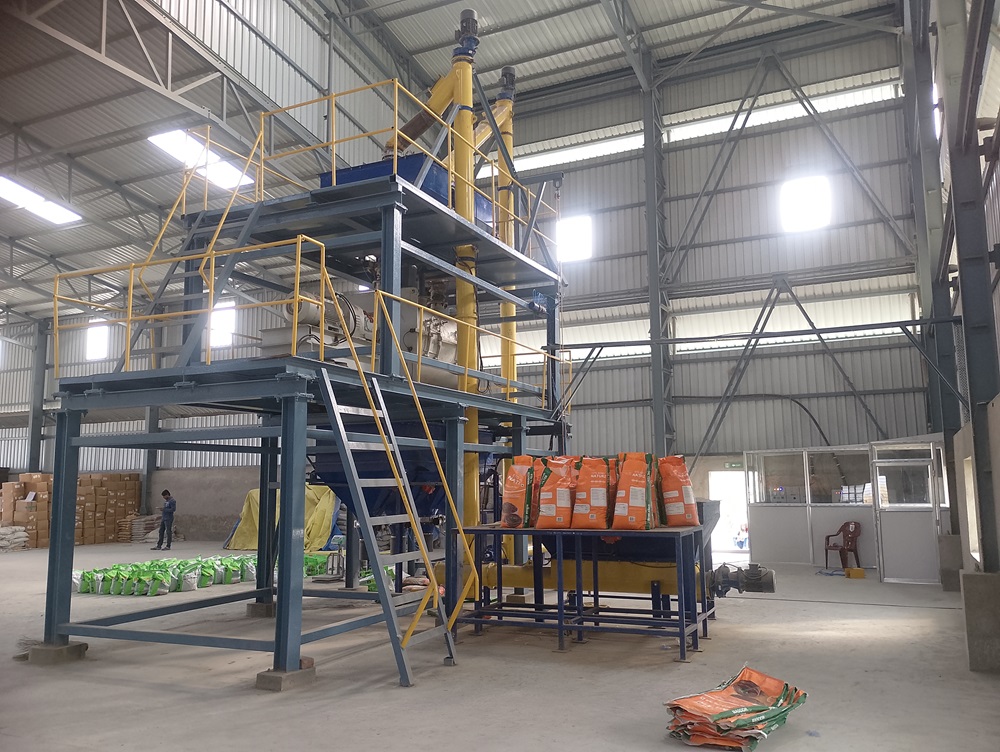

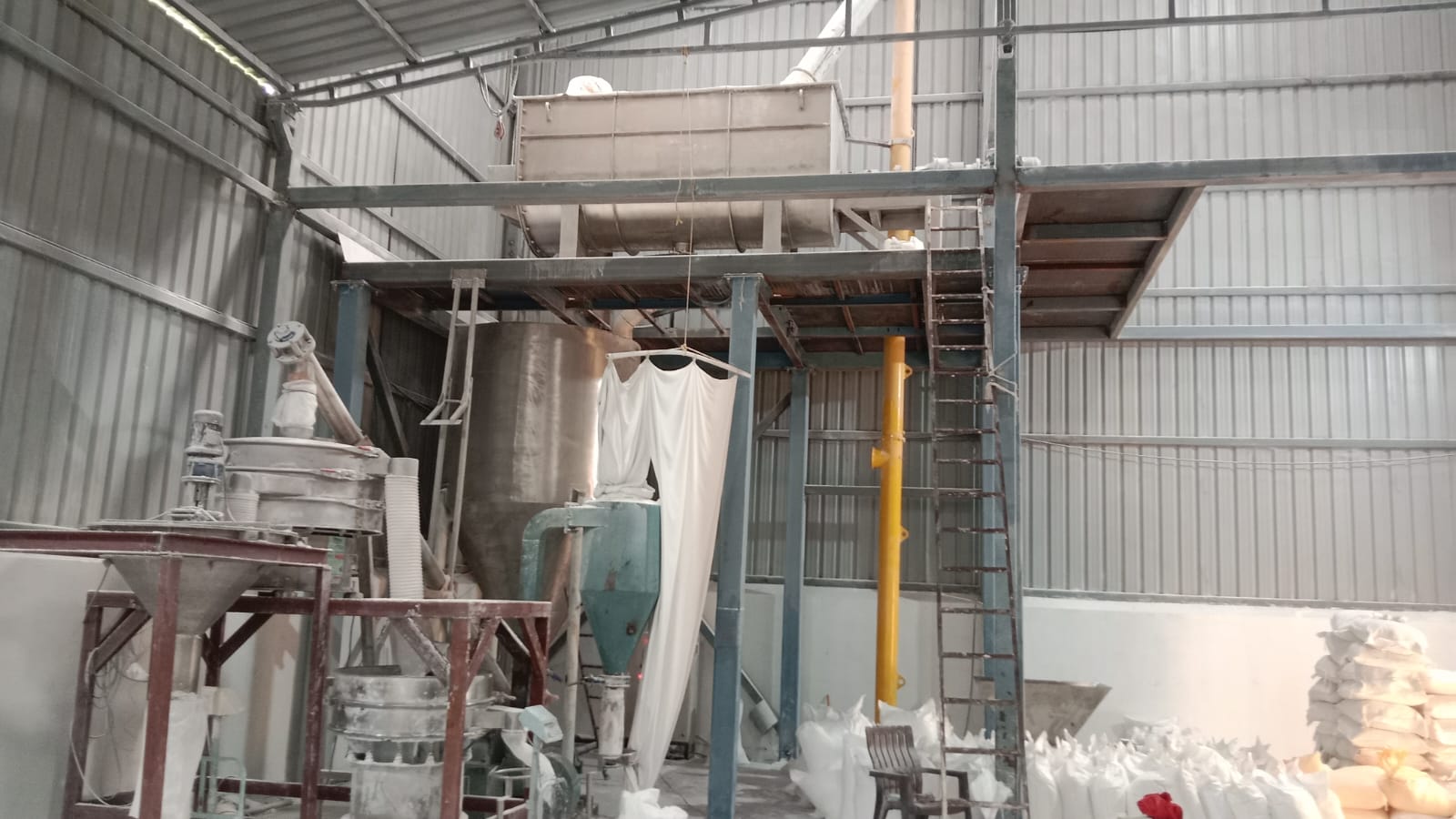

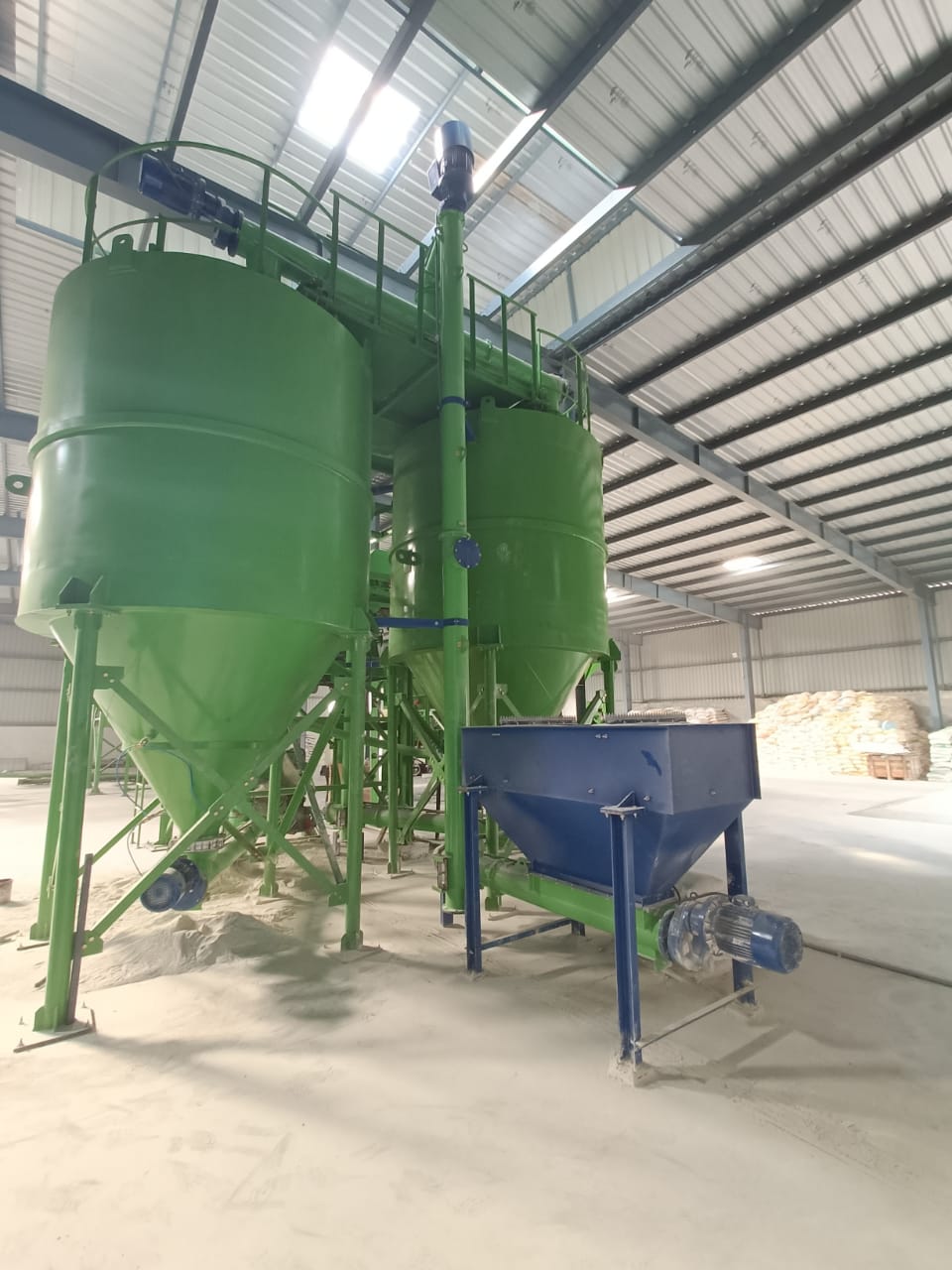

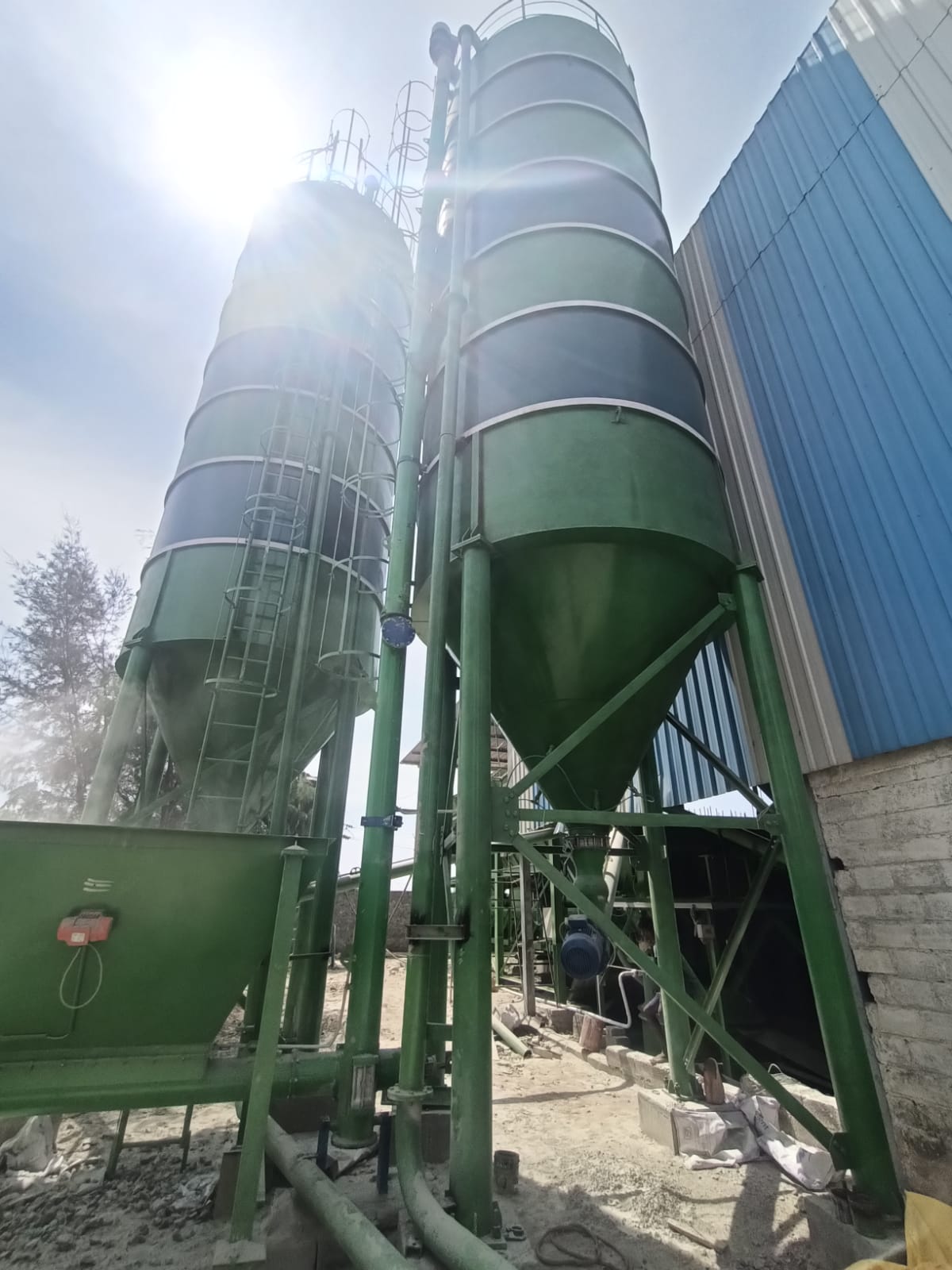

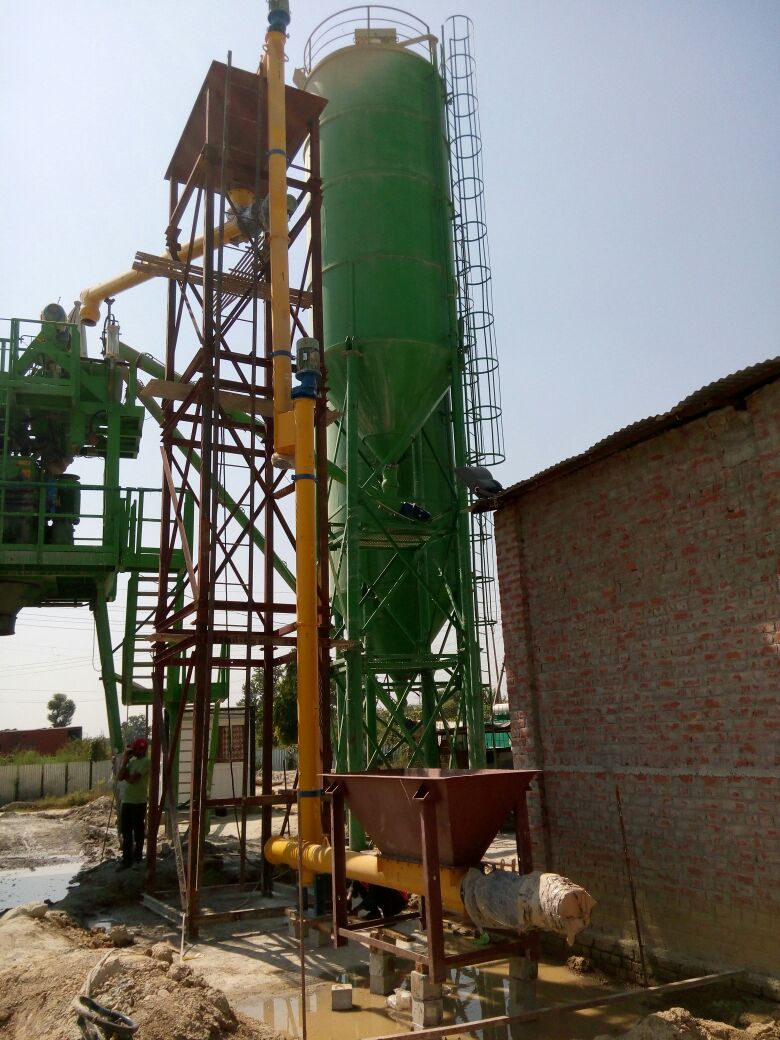

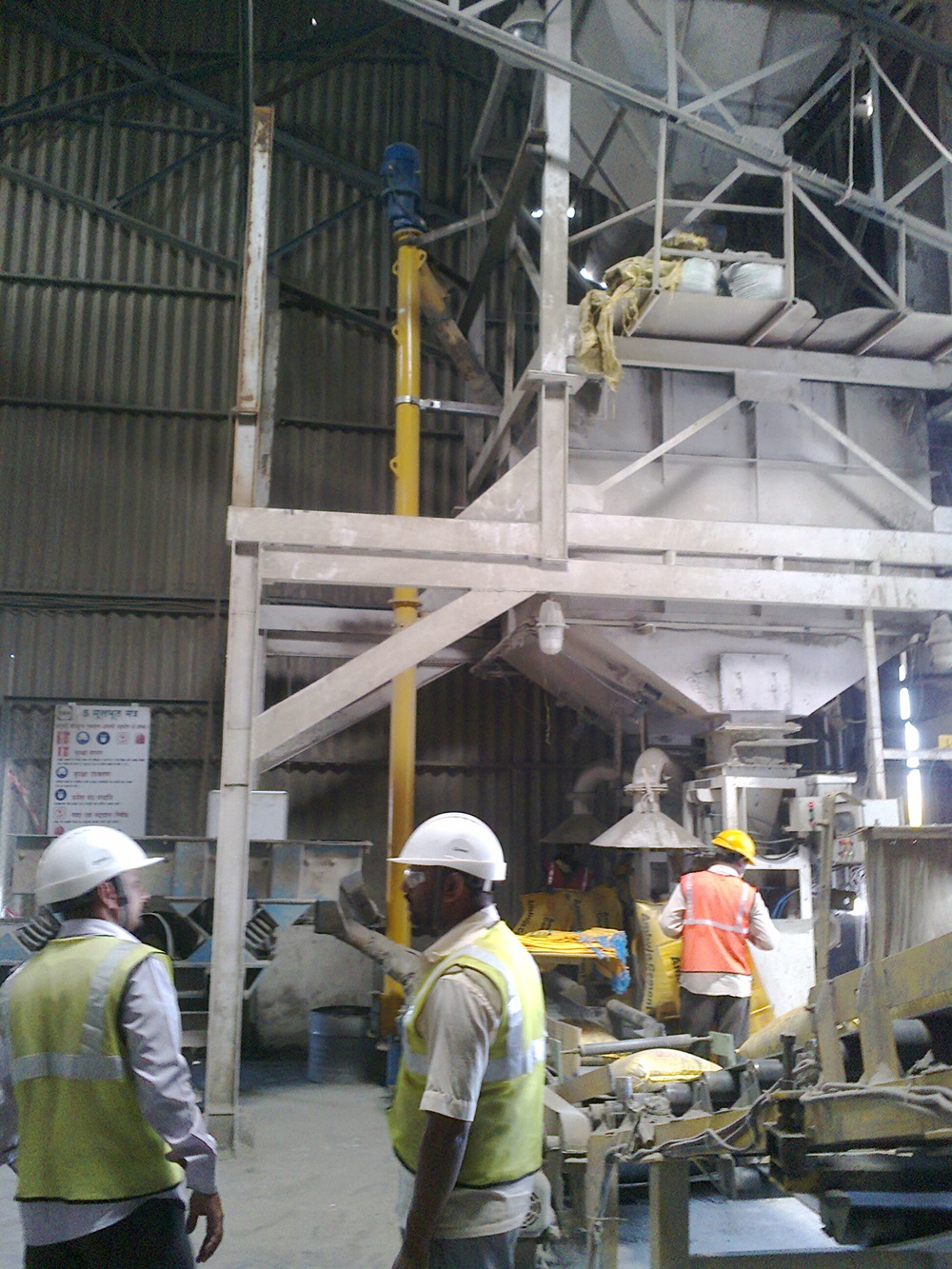

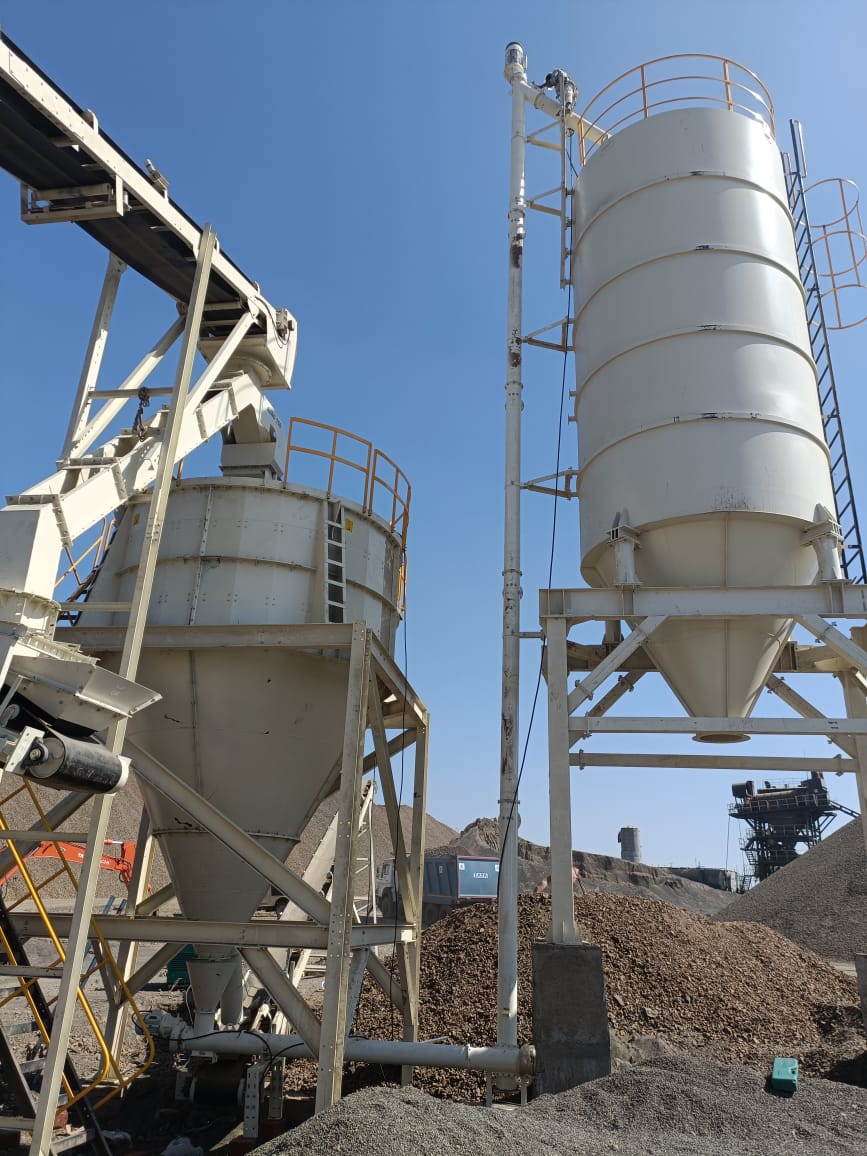

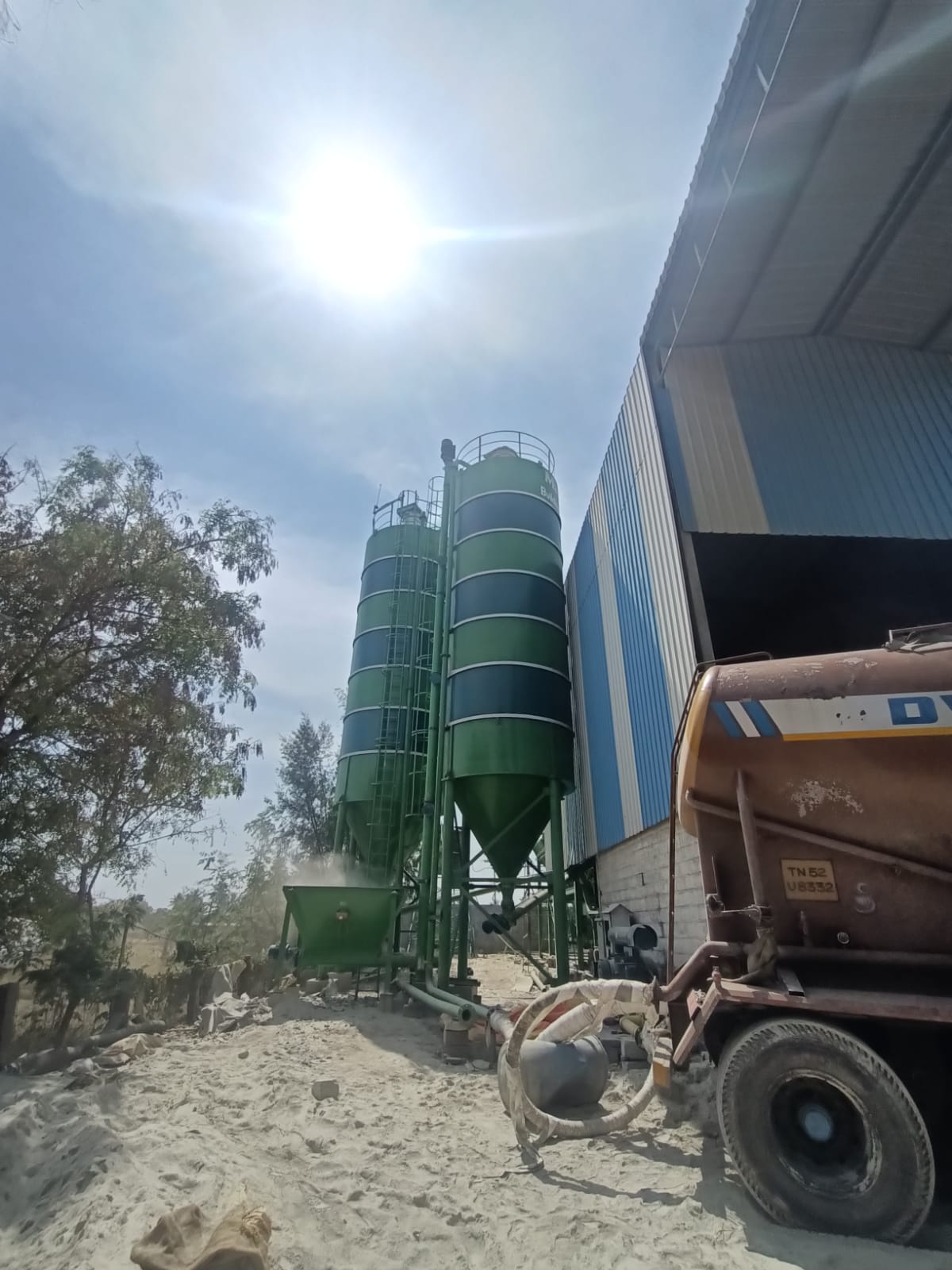

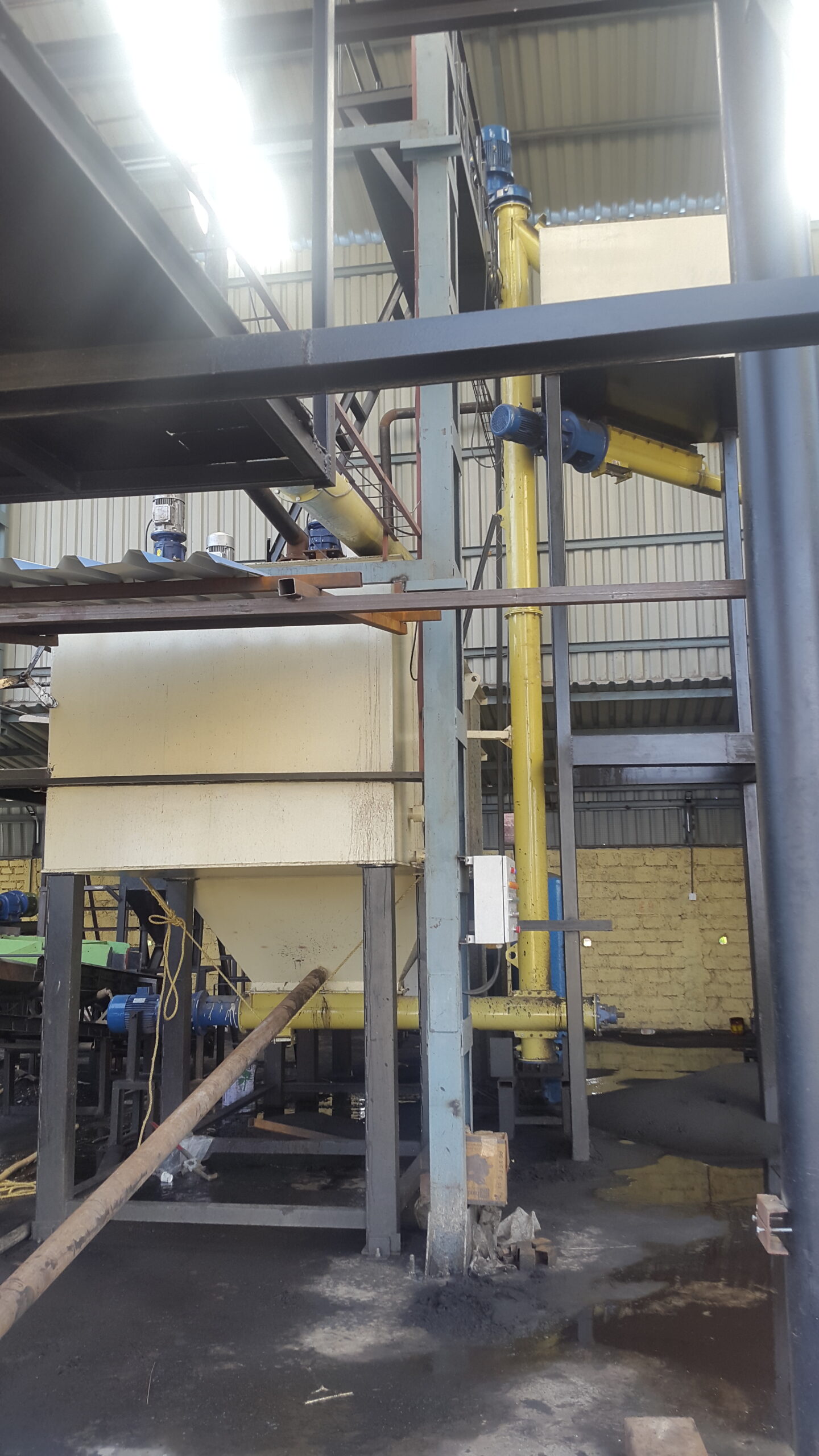

Installations & Applications
Vertical screw conveyors supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.
