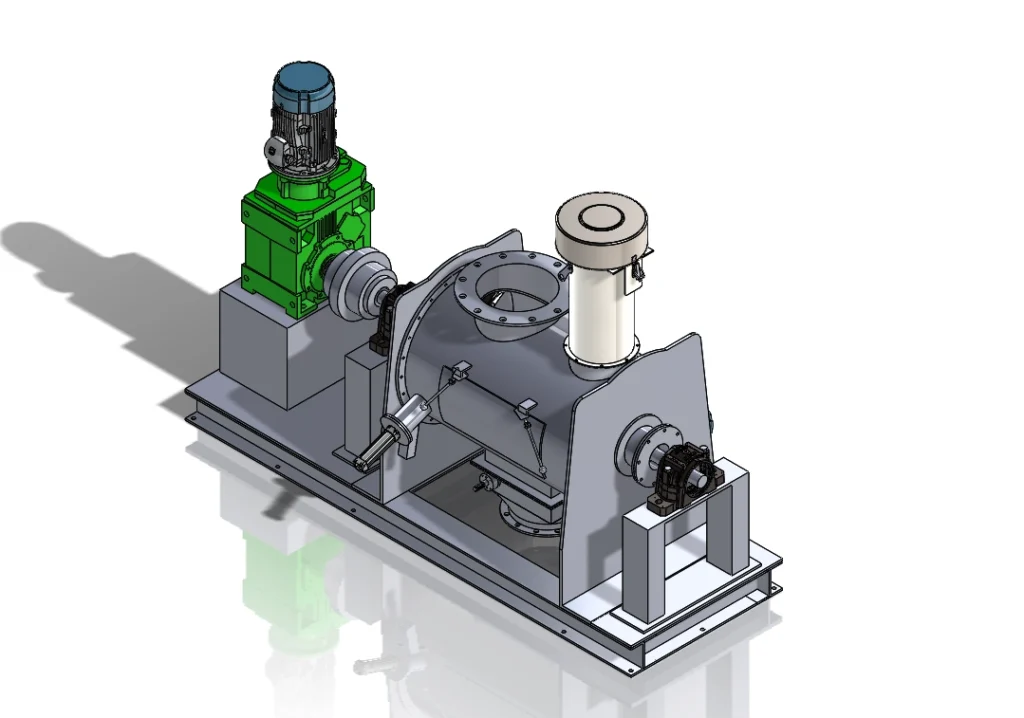

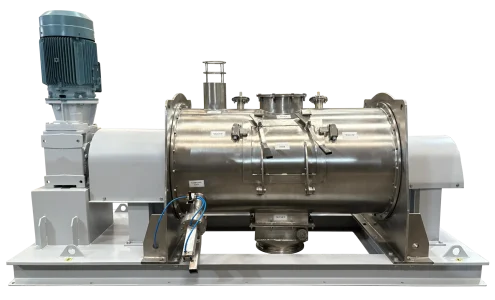

Plough Share Mixer
Plough-shaped elements running at speed lift the whole batch into a mechanically fluidised bed, which is why the cycle is short and the result is even.
Capacity 60 to 12,000 litres
Type Batch or continuous
MOC MS or SS
Bomb-bay discharge
Batch size
60 litres to 12,000 litres
Operation
Batch or continuous
Construction
Mild steel or stainless steel
Discharge
Standard round, or bomb-bay
High-Speed Fluidized Mixing for Ultimate Consistency
Cosben Engineering’s plough share mixer is designed for fast and uniform mixing of powders and bulk materials, especially where consistency and short cycle times are critical. In many industrial processes, uneven mixing leads to quality variations, poor material behavior, and inefficiencies further down the line. A properly designed industrial plough mixer helps eliminate these issues.
Also referred to as a ploughshare mixer or plough mixer machine, this system works on a fluidized mixing principle. High-speed plough-shaped elements continuously lift and disperse the material, creating a mechanically fluidized bed. This allows particles to mix rapidly and uniformly, even in demanding applications.
For processes that require liquid addition or intensive blending, the system can be equipped with high-speed choppers – making it an effective high intensity mixer for powder processing.
At a Glance
Batch size
Operation
Construction
Discharge
Key Features & Benefits
Five points, and the first is the one that matters: how fast the batch comes right.
01
Fast & Uniform Mixing
Achieves consistent mixing in short cycle times using fluidized bed action.
02
High-Intensity Blending
Suitable for dry powders as well as powder-liquid mixing applications.
03
Flexible Configuration
Available in both batch and continuous operation.
04
Efficient Discharge Options
Centre or Bomb-Bay discharge for faster and complete material evacuation.
05
Adaptable Construction
Available in Mild Steel or Stainless Steel based on application requirements.
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Salient Features
The high-shear mechanism, and the choppers that go in when liquid is added.
- Designed as a reliable powder plough mixer for uniform blending
- High-shear mixing mechanism for efficient dispersion
- Optional high-speed choppers for liquid addition
- Suitable for complex mixing applications requiring precision and consistency
Technical Specifications
Two decisions: batch or continuous, and how the mixer empties. Both change the machine.
Plough Share Mixer
Batch Size
60 liters to 12,000 liters
Operation Type
Batch / Continuous
Material of Construction
Mild Steel / Stainless Steel
Discharge Options
Standard (Round) / Bomb-Bay
Installations & Applications

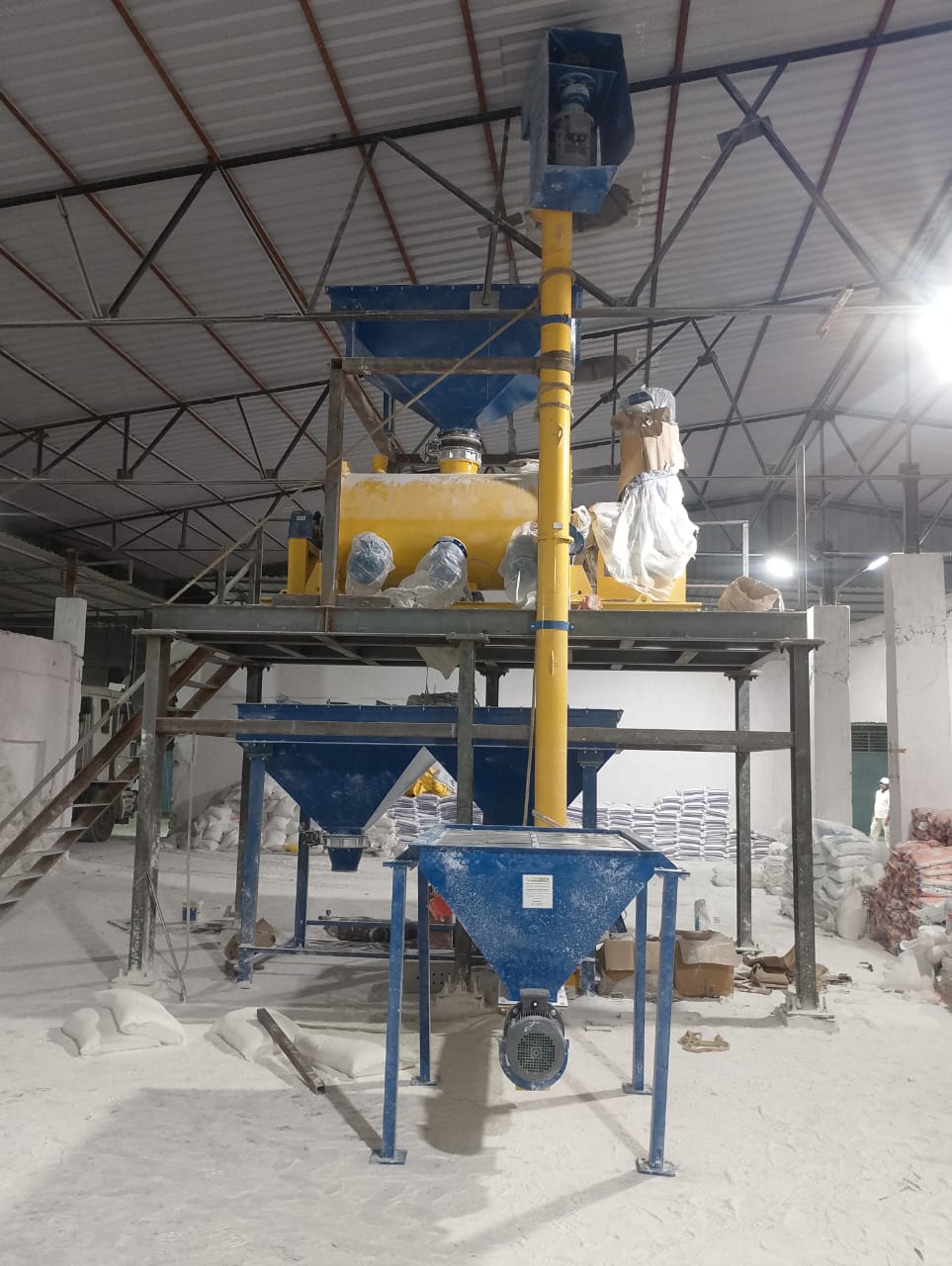

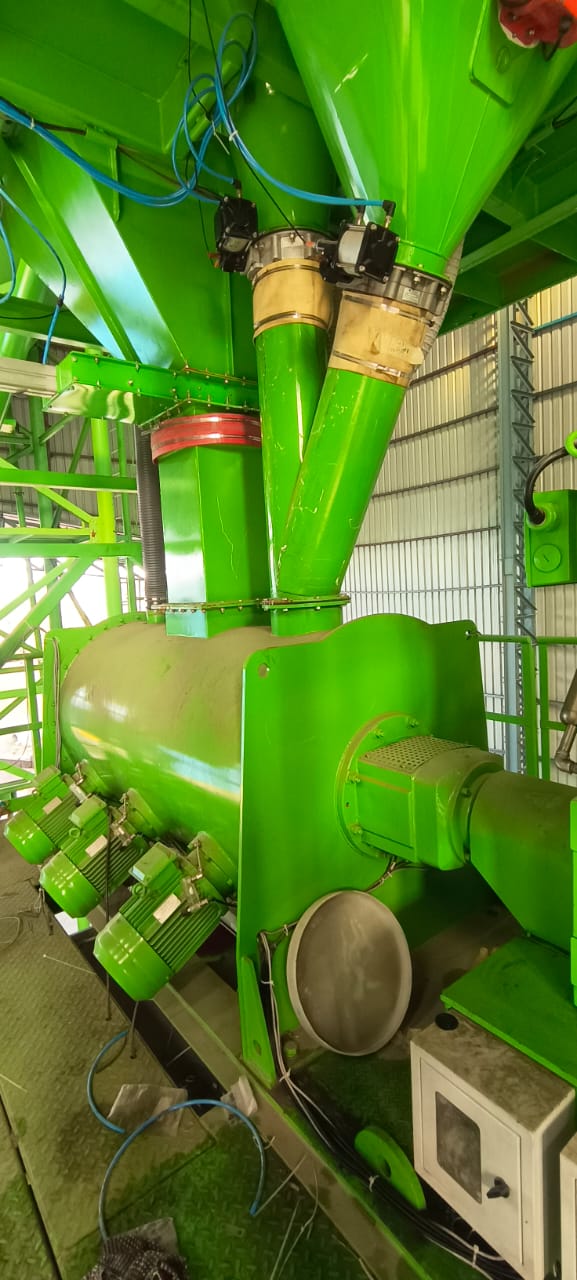

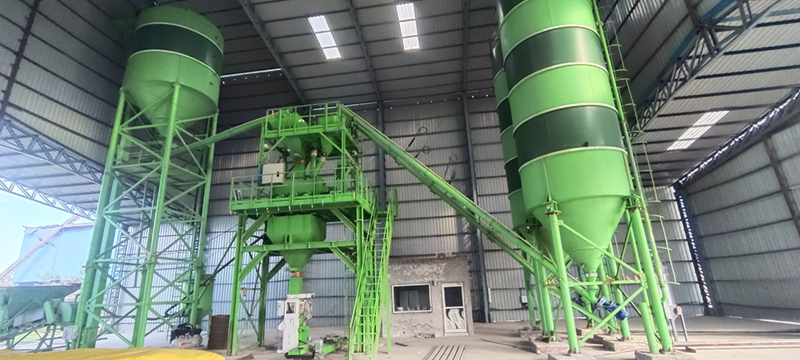

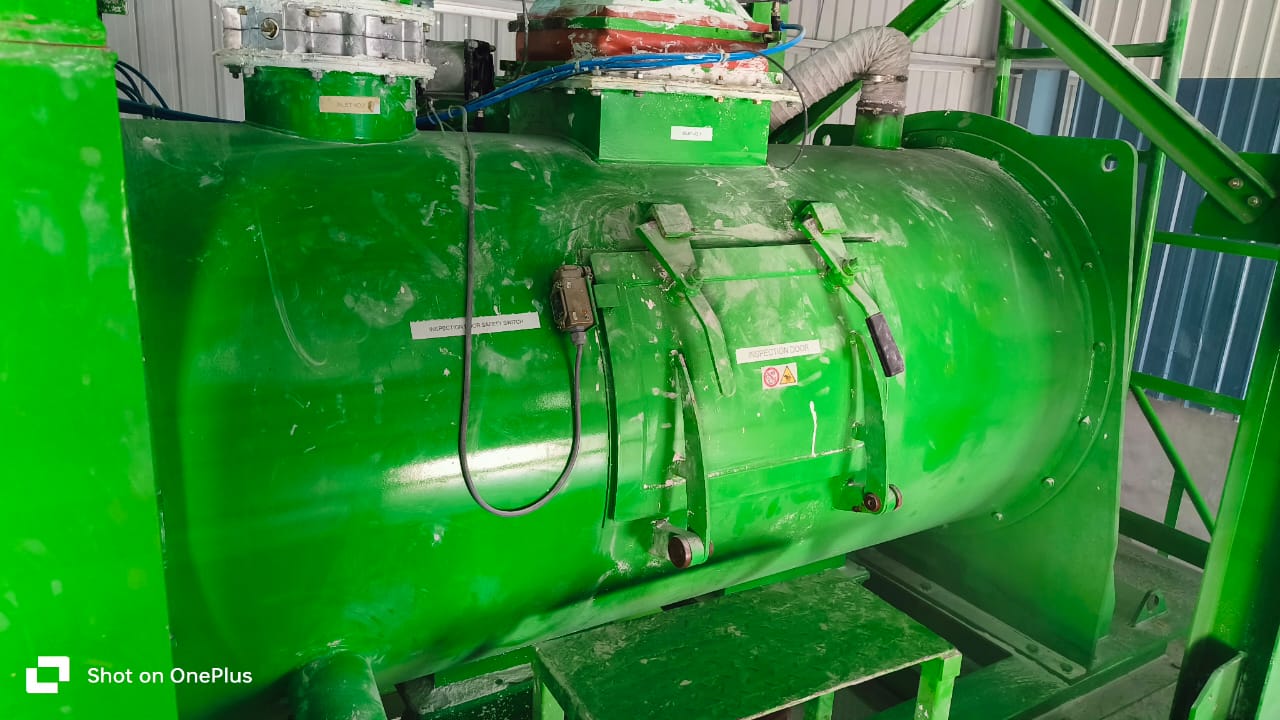

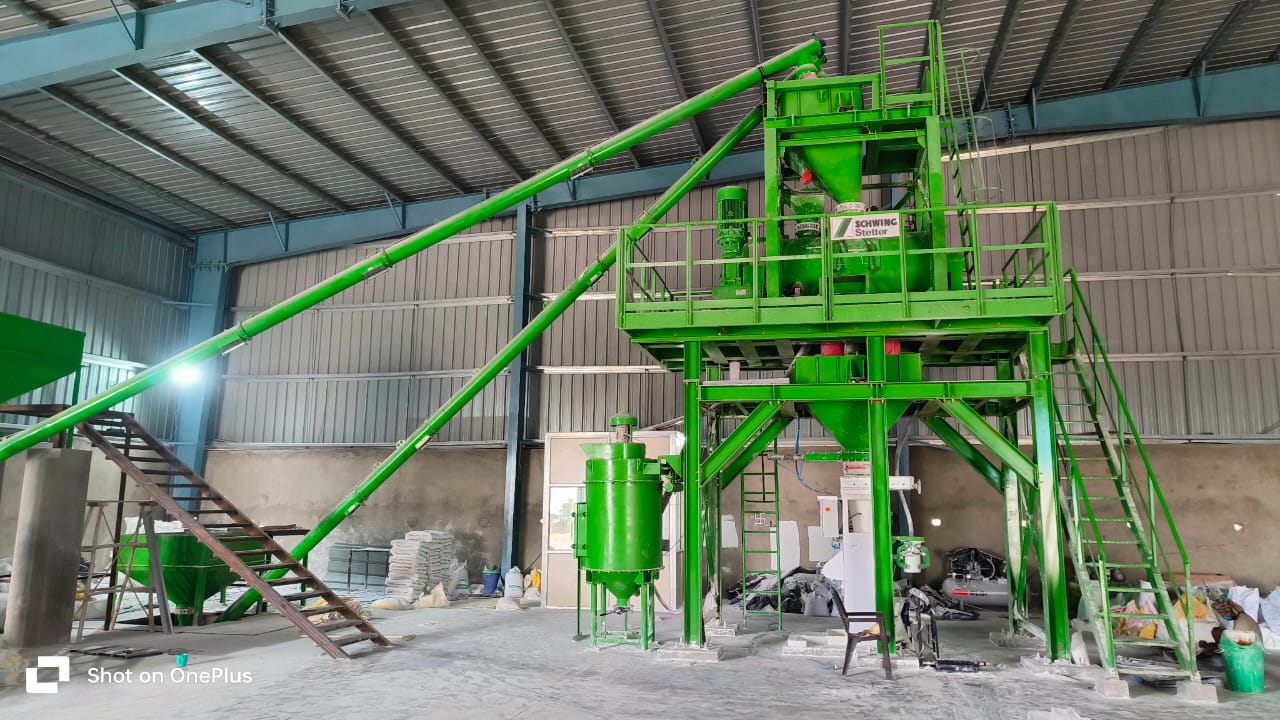

Plough share mixer supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.
