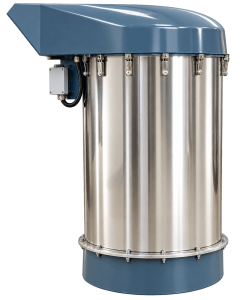

Top Mounted Dust Collector (Reverse Air Jet Type)
An online unit on the silo roof: compressed air pulses the dust off the cartridges without the filling stopping, and the panel stays within reach.
Online cleaning
Pulse jet compressed air
Cover Weather and bird proof
Exterior control panel
Mounting
Directly on the silo, bin or hopper top
Cleaning
Pulse jet, using compressed air, online
Operation
Filtration continues while cleaning
Monitoring
Differential pressure meter on the electric card
Cleaning the Cartridges While the Silo Is Still Filling

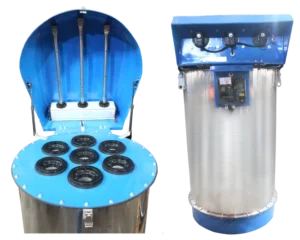

Cosben Engineering’s top mounted dust collector (reverse air jet type) is designed for efficient dust control in silo, bin, and hopper applications. In bulk material handling systems, especially during filling operations, dust generation is unavoidable. A reliable silo top dust collector helps maintain clean air while supporting stable plant operation.
This reverse jet dust collector uses a pulse jet cleaning mechanism, where compressed air is used to dislodge dust accumulated on cartridges. Acting as a cartridge dust collector and jet pulse filter system, it ensures continuous filtration without interrupting the process.
Being an online system mounted directly on top of the silo, it allows cleaning while the unit is in operation. As an industrial dust filter and silo vent filter, it supports both emission control and efficient material handling in demanding environments.
At a Glance
Mounting
Cleaning
Operation
Monitoring
Key Features & Benefits
Four points, and the one that decides it is that nothing stops to be cleaned.
01
Continuous Dust Filtration
Online cleaning allows uninterrupted operation during dust collection.
02
Pulse Jet Cleaning Mechanism
Compressed air dislodges dust from cartridges for consistent performance.
03
Compact & Practical Design
Designed for easy installation and accessible maintenance.
04
Improved Monitoring
Equipped for better operational visibility through control and measurement systems.
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Technical Specifications
Baseline configuration. Every unit is finalized to the material and duty of your process.
Model :Top Mounted Pulse Jet Dust Collectors
Air Volume
60 m3/Hr to 5000 m3/Hr
Filtration Area
1m2 to 70m2
Dust Particle handling capacity
> 10 microns
Temperature
10° C - 150° C
Outlet Emission
< 30 mg/nm3
Salient Features
The cover, the panel position and the pressure meter: three things that matter on a unit nobody wants to climb to.
- Compact design with weather and bird proof cover, easy operating height for maintenance as and when required.
- Easy to reach exterior control panel.
- Differential pressure meter on electric card.
- Online cleaning unit.
Installations & Applications
Bag dumping stations supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.
