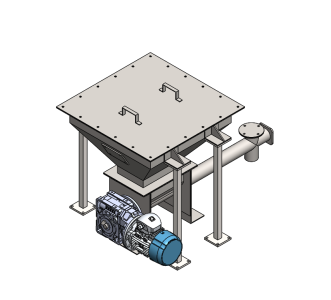

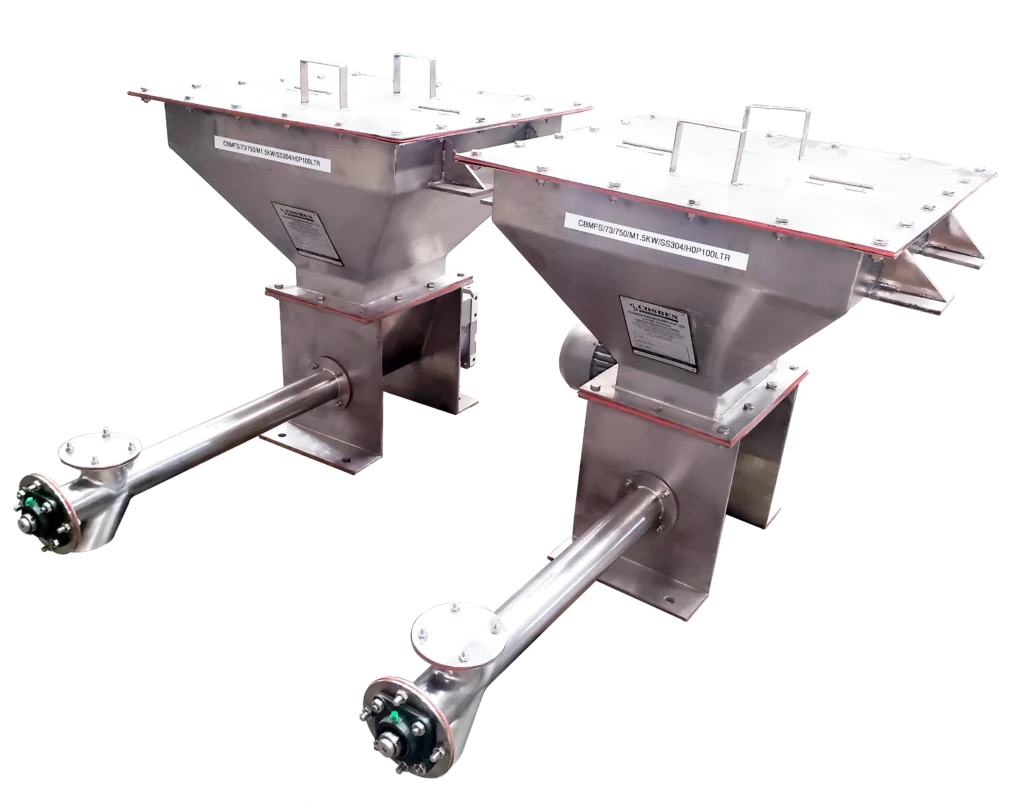

Micro Batch Feeder
A direct drive micro screw for additives and minor ingredients, sealed at the drive end, in a footprint that fits where a standard feeder will not.
Range 42 to 168 mm
Capacity 5 to 1000 lit/hr
Accuracy ±2 to 3%
CS, SS304 or SS316
Diameter range
42 mm to 168 mm
Capacity
5 to 1000 litres per hour, with VFD
Accuracy
Plus or minus 2 to 3 percent
Construction
Carbon steel, SS304 or SS316
Small Doses, in a Space That Will Not Take a Full Feeder
Cosben Engineering’s micro batch feeder is designed for applications where small quantities of material need to be dosed accurately and consistently. In many processes, especially where additives or minor ingredients are involved, even slight variations can affect the final product. A reliable precision dosing feeder helps maintain control at this critical stage.
Also referred to as a micro feeder or micro screw feeder, this system is built for compact installations where space is limited but accuracy still matters. It ensures smooth and controlled feeding of powders and granular materials without unnecessary complexity.
With a simple and practical design, the feeder offers stable performance for continuous operation while keeping maintenance requirements low. It works well as an additive dosing feeder in processes that require consistent, repeatable small-batch feeding.
At a Glance
Diameter range
Capacity
Accuracy
Construction
01
Accurate Small-Quantity Feeding
Designed for precise dosing of powders and granules in low-capacity applications.
02
Compact & Space-Saving Design
Ideal for plants where installation space is limited.
03
Smooth Material Flow
Internal geometry supports consistent flow across different material types.
04
Dust-Free Operation
O-ring sealing in the drive system helps maintain clean operation.
05
Low Maintenance & Easy Cleaning
Fewer components make inspection and cleaning straightforward.
06
Built for Continuous Use
Reliable performance even under long operating hours.
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Salient Features
A direct drive, an O-ring seal, and few enough parts to clean between products.
- Suitable as a powder micro feeder for controlled dosing applications
- Direct drive design for stable and efficient operation
- Available with VFD for adjustable feed rates
- Designed for both continuous and batch processes
Technical Specifications
Baseline configuration. Every unit is finalized to the material and duty of your process.
Model · Micro Batch Feeder
Diameter Range
42 mm to 168 mm
Capacity
5 lit/hr to 1000 lit/hr (with VFD)
Accuracy
±2% to 3%
Material of Construction
Carbon Steel / SS304 / SS316
Related Equipment
Often specified alongside this equipment to move and filter material downstream.

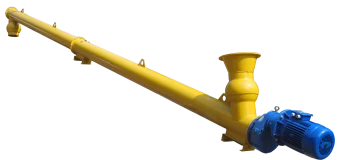

Screw Conveyor

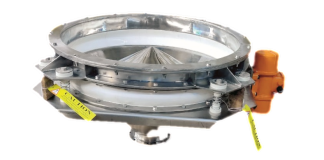

Bin Activator
