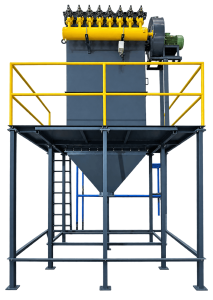

Industrial Dust Collector (Reverse Air Jet Type)
Stand-alone dust collection from multiple process points, silos and material handling equipment, with automatic reverse air jet cleaning and ground-level access for maintenance.
Options Cartridge or Bag
MOC MS, SS304 & SS316
FILT
Area
4.89 to 34 m2
DC
dust collection for
Multiple Points
TYPE
Installation
Indoor and Outdoor
Options
Cartridge or Bag
Built to Take Dust From Every Point in the Plant

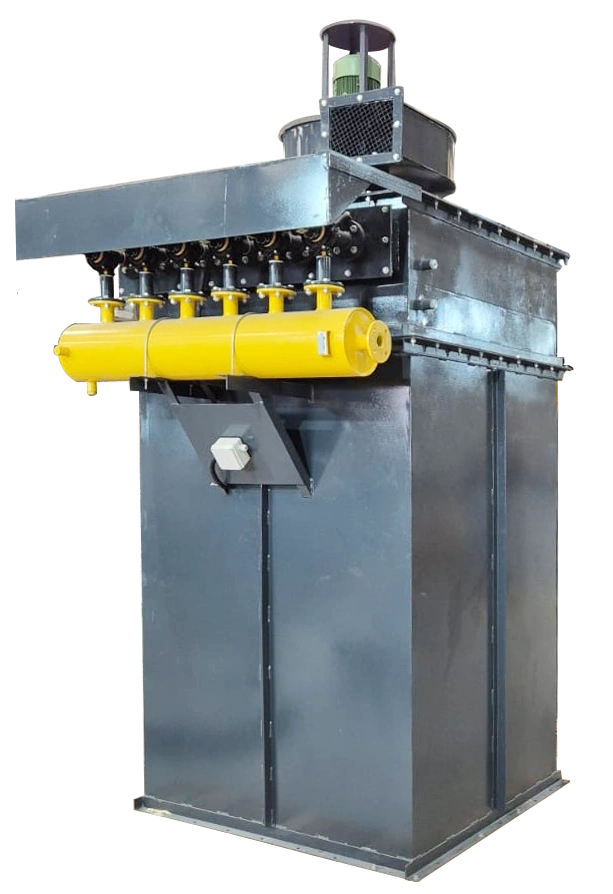

Cosben’s Industrial Dust Filtration Equipment (Reverse Air Jet Type) is designed for stand-alone dust collection from multiple process points, silos and material handling equipment. Installed at ground level, it efficiently captures airborne dust through a common ducting system, helping maintain cleaner operations while reducing dust emissions across the plant.
The system uses an automatic reverse air jet cleaning mechanism that continuously cleans the filter elements using compressed air. Complete with a collection hopper, butterfly valve and industrial blower, it provides a reliable solution for high-volume industrial dust extraction.
At a Glance
Filtration area
Filtration volume
Construction
Cleaning
Key Features & Benefits
Why plants specify a stand-alone Cosben filter rather than a collector on each machine.
01
Stand-alone dust collection for multiple process points
02
Handles high dust loads and large airflow volumes
03
Automatic reverse air jet filter cleaning
04
Reduces plant-wide dust emissions
05
Easy maintenance with ground-level access
06
Suitable for indoor and outdoor installation
Salient Features
One filter body, configured to the airflow, the element type and the construction.
- Reverse Air Jet cleaning system
- Cartridge or bag filter options
- Collection hopper with butterfly valve
- Industrial blower included
- MS, SS304 & SS316 construction
- Custom airflow capacities available
Technical Specifications
Baseline configuration. Every unit is finalized to the material and duty of your process.
STANDALONE DUST COLLECTOR
Capacity
200/400/600 bags per hour
Bag Type
Paper/HDPE
Bag Capacity
25 – 50 kg
Construction
MS body with SS contact parts (optional)
Additional Features
Dust collector and empty bag extractor (optional)
Model Variants & Filtration Ratings
| Product Code | Filtration Area (m²) | Filtration Volume (M³/HR) |
|---|---|---|
| CDC/A/GRD/4.89/MS/1.1kW | 4.89 | 350 |
| CDC/A/GRD/6/MS/1.1kW | 6 | 400 |
| CDC/A/GRD/9/MS/1.5kW | 9 | 600 |
| CDC/A/GRD/12/MS/1.5kW | 12 | 800 |
| CDC/A/GRD/16/MS/2.2kW | 16 | 1100 |
| CDC/A/GRD/32/MS/2.2kW | 32 | 2300 |
| BDC/CL/A/150X10/GRD/11/MS/2.2 Kw | 11 | 1100 |
| BDC/CL/A/150X10/GRD/18/MS/2.2 Kw | 18 | 1800 |
| BDC/CL/A/150X15/GRD/25/MS/2.2 Kw | 25 | 2500 |
| BDC/CL/A/150X20/GRD/34/MS/2.2 Kw | 34 | 3400 |
