Dust Conditioner

Dust Conditioner

Combines a screw feeder and a mixer in one unit, so fine powders are metered and wetted in a single pass and leave the plant as a stable material.

Design Feeding and mixing in one

Water Addition Controlled water addition

DES

Design

Feeding and mixing in one

WA

Water Addition

Controlled water addition

PM

Paddle

Paddle Mixing

CO

Operation

Continuous Operation

Built to Wet Down Dust Before It Leaves the Plant

Cosben Engineering’s dust conditioner is designed to control and stabilize fine powders by mixing them with water, making them easier to handle, transport, and dispose of. In many plants, dry dust – especially materials like fly ash or filler – can create handling issues, airborne pollution, and material loss. A well-designed dust conditioning mixer helps address these problems at the source.
Also commonly used as a fly ash conditioner, the system combines feeding and mixing in a single unit. The first stage controls the material flow, while the second stage ensures proper mixing with water through specially designed paddles. This allows simultaneous mixing and humidification, resulting in a stable and manageable output.
As an industrial dust stabilizer, it is widely used in applications where dust needs to be conditioned before disposal or reuse, helping improve plant cleanliness and environmental compliance.

At a Glance

Design

Combined screw feeder and mixer in a single unit

Water Addition

Sprinklers designed to optimise moisture without excess consumption

Operation

Continuous, in dust-prone environments

Best for

Fly ash and fine powders that must be conditioned before disposal or reuse

Key Features & Benefits

Why plants specify a Cosben dust conditioner where dust has to be stabilised on site.

01

Simultaneous Mixing & Humidification

Efficiently mixes dust with water to reduce airborne particles and improve handling.

02

Controlled Water Usage

Water sprinklers are designed to optimize moisture addition without excess consumption.

03

Integrated Feeding & Mixing

Combination of screw feeder and mixer ensures consistent and uniform output.

04

Improved Dust Handling

Reduces dust generation, making transport and disposal easier.

05

Compact & Easy Installation

Simple design allows quick integration into existing systems.

Next Step

Talk to Our Engineers

Share your requirement, material and layout for a plant-specific recommendation.

Salient Features

One paddle arrangement, built for continuous duty and long service life.

Technical Specifications

Baseline configuration. Every unit is finalized to the dust and the duty.

Dust Conditioner
Dust Conditioner
Screw Speed
Screw Speed 145 – 290 RPM
Capacity
20 m³/Hr & 40 m³/Hr
Length (Between Inlet & Outlet)
1537 mm
Tube Material
Is 2062 & EQUIV (Stainless steel on request)
Paddle Material
Hardox
Gross Weight
435 Kg
Operating Environment
Up to 110 °C
Rated Power
11kW – 22kW
Rated Voltage
Rated Voltage 380VAC – 440VAC / 50Hz-60Hz
Motor Speed
1450 RPM

Installations & Applications

Dust Conditioner supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.

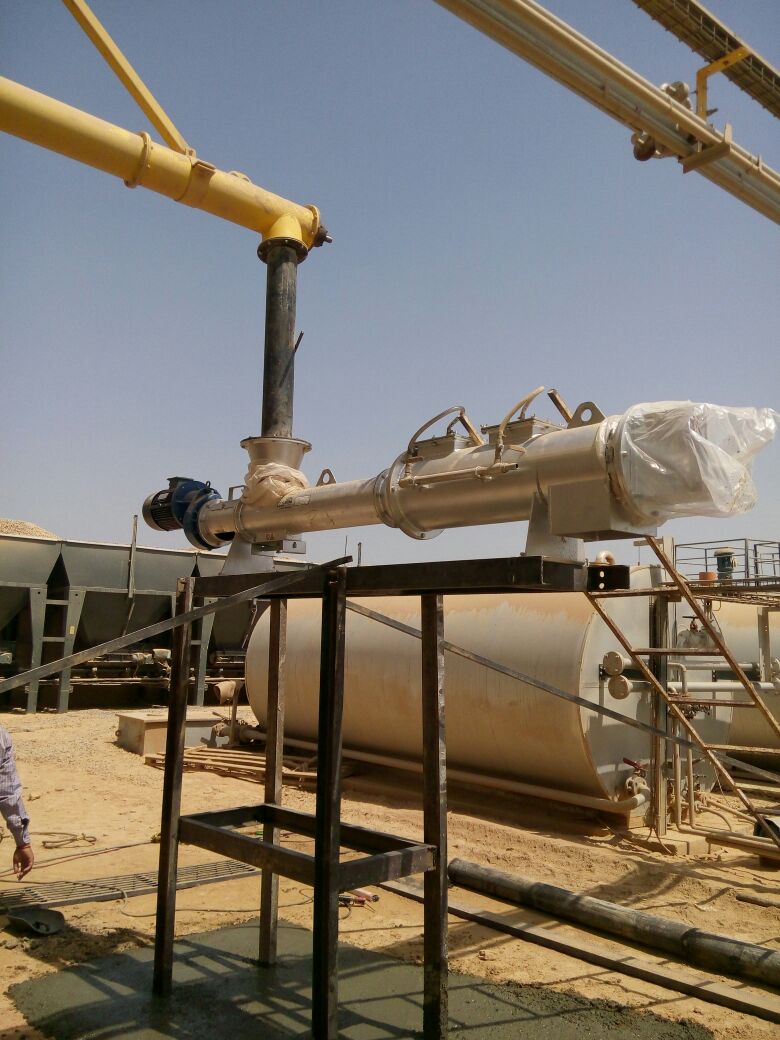

Dust Conditioner installation 1
Installations & Applications of Dust Conditioner at Uran Site

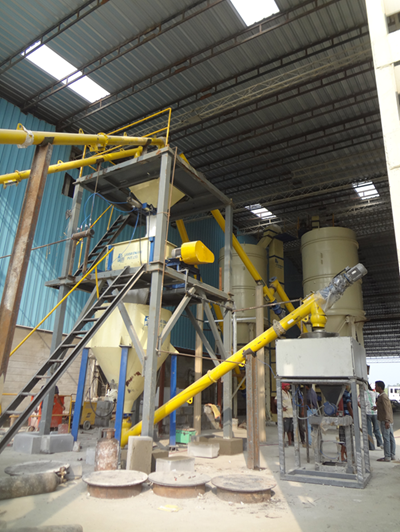

Dust Conditioner installation 2
Installations & Applications of Dust Conditioner at Chittorgarh Site

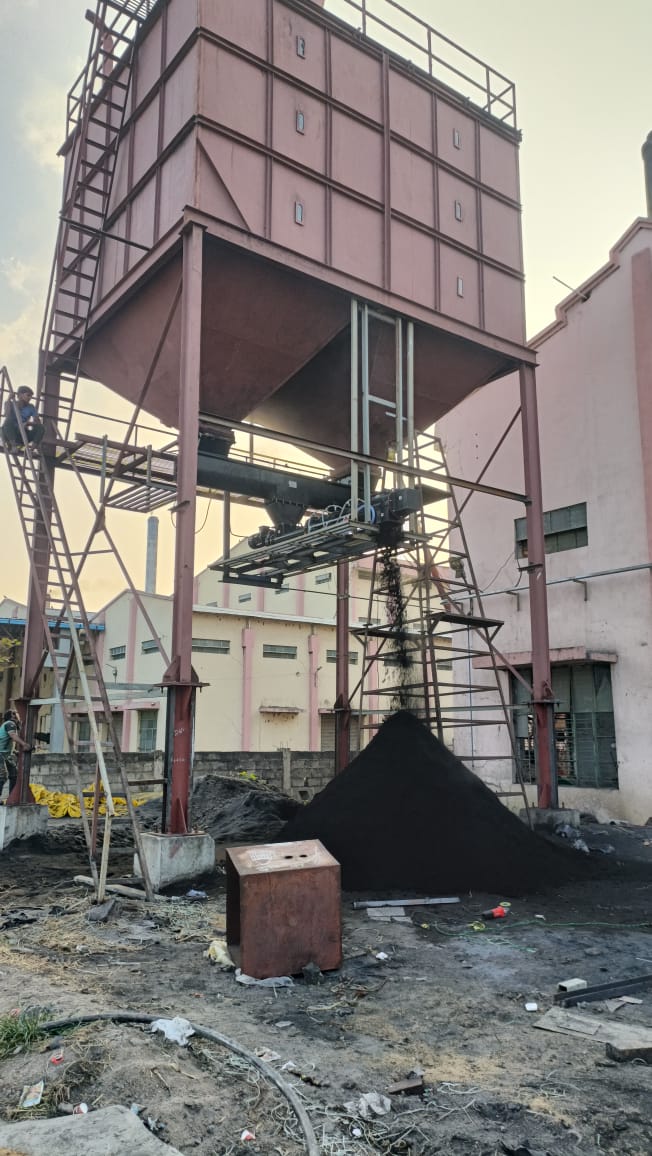

Dust Conditioner installation 3
Installations & Applications of Dust Conditioner at Raichur Site

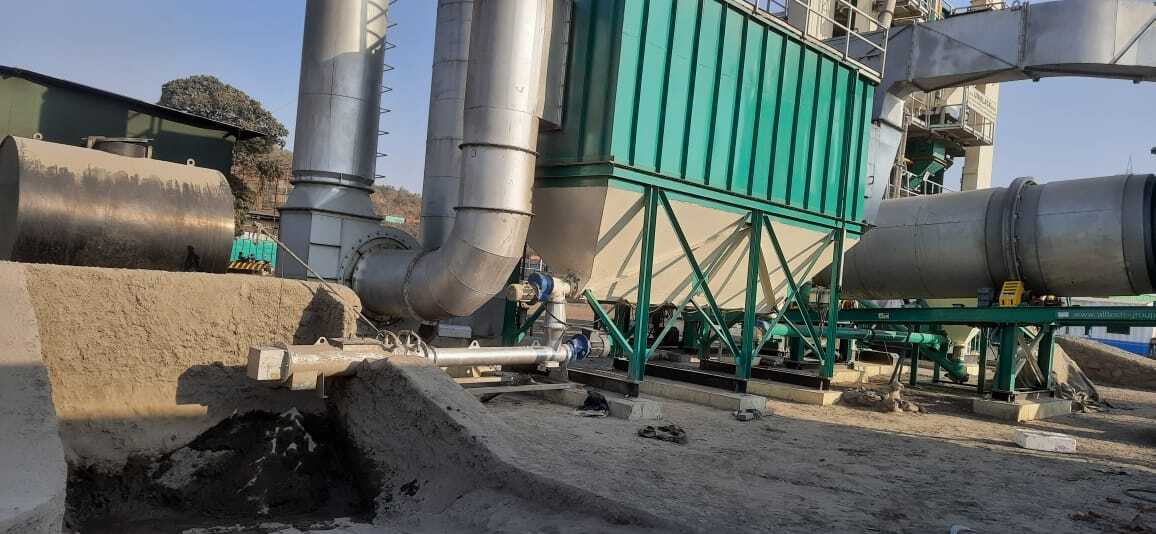

Dust Conditioner installation 4
Installations & Applications of Dust Conditioner at Hyderabad Site
