Bag Dumping Station
Safe, controlled manual unloading of powders and bulk materials. Engineered for plants where bags must be emptied into hoppers, conveyors or process equipment with minimal dust generation.
MOC MS / SS 304L / 316 / 316L
Optional Dust Collector
Formats Small & Large Bags
MOC
Material Choice
MS or SS 304L / 316 / 316L
ETO
Engineered to Order
Sized to your layout and bag format
PJ
Pulse Jet Filtration
Optional in-built dust collector
01
Single System
Handles small and large bags alike
Built to Give You Clean, Controlled Bag Unloading
Cosben Engineering’s bag dumping station is designed for safe and controlled manual unloading of powders and bulk materials in industrial plants. It is commonly used where materials are received in bags and need to be transferred into hoppers, conveyors or process equipment with minimal dust generation.
The unit functions as a manual bag unloading station, allowing operators to open and discharge bags efficiently while maintaining a clean working environment. It is suitable for handling both small and large bags, making it a flexible solution for different plant requirements.
The system typically consists of a bag dumping cabinet with grille and bag support, mounted over a hopper. A specially designed hood encloses the dumping area to help control dust during operation. When supplied with a dust collector, the unit includes an integrated filtration system with pulse jet cleaning and a fan arrangement for effective dust extraction.
At a Glance
Construction
Filtration
Bag Formats
Best For
Key Features & Benefits
Why plant operators choose Cosben bag dumping stations for day-to-day bulk unloading.
01
Controlled Manual Bag Unloading
Designed for safe and efficient emptying of bags with minimal material loss.
02
Dust-Free Operation (Optional)
Available with built-in filtration and a dust extraction system for a dust-free bag dump station.
03
Flexible Bag Handling
Suitable for both small and large bag dumping using a single system.
04
Compact and Practical Design
Optimized for space utilization while maintaining ease of operation.
05
Improved Workplace Safety
Reduces dust exposure and supports cleaner working conditions for operators.
Next Step
Talk to Our Engineers
Share your bag size, material and layout for a plant-specific recommendation.
Salient Features
Every station is configured around the same core engineering, then customized to your bag size, material and layout.
- Bag Support & Grille Design: front-mounted grille with bag rest for stable, controlled dumping bag after bag.
- Integrated Hood & Enclosure keeps dust contained at the source, away from the surrounding work area.
- Filter System (Optional) with pulse jet cleaning and fan arrangement for continuous dust control.
- Material of Construction in Mild Steel or Stainless Steel (SS 304L / 316 / 316L).
- Compact Footprint engineered around your plant layout and available floor space.
- Configured to Order based on plant layout, material type and bag size requirements.
Configurations
Two ways to specify the same station, depending on whether dust extraction needs to be built in.
Standard Unit
- Bag dumping cabinet with grille and bag support
- Integrated hood to enclose the dumping area
- Mounted directly over hopper, conveyor or process inlet
- Mild Steel or Stainless Steel construction
- Sized for small or large bag formats
With Dust Collector
- Everything in the Standard Unit
- Integrated filtration system built into the cabinet
- Pulse jet cleaning for continuous filter regeneration
- Dedicated fan arrangement for dust extraction
- Recommended for enclosed or high-occupancy work areas
Technical Specifications
Baseline configuration. Every unit is finalized to the material and duty of your process.
Model BDS-STD · Bag Dumping Station
MOC
Mild Steel / Stainless Steel (304L / 316 / 316L)
Filter Option
Available with or without in-built dust collector
Filter System
Pulse jet cleaning with suitable filter area and fan
Design
Customizable for small and large bag unloading
Structure
Compact design with optimized space utilization

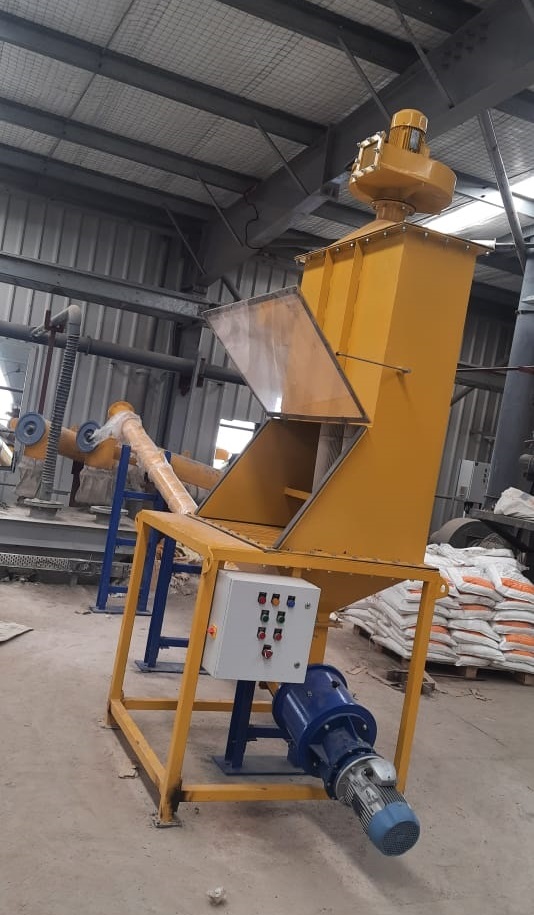

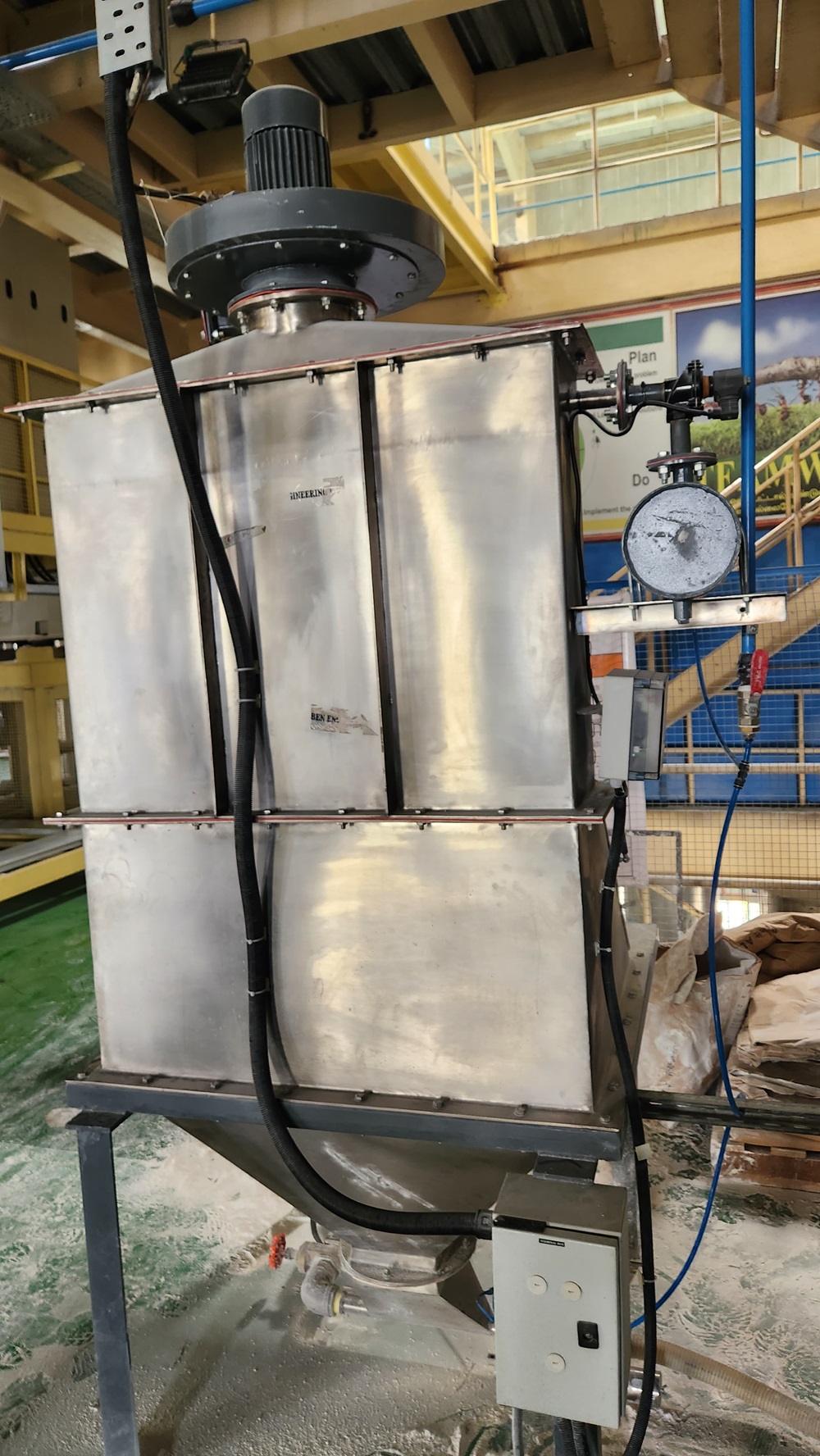

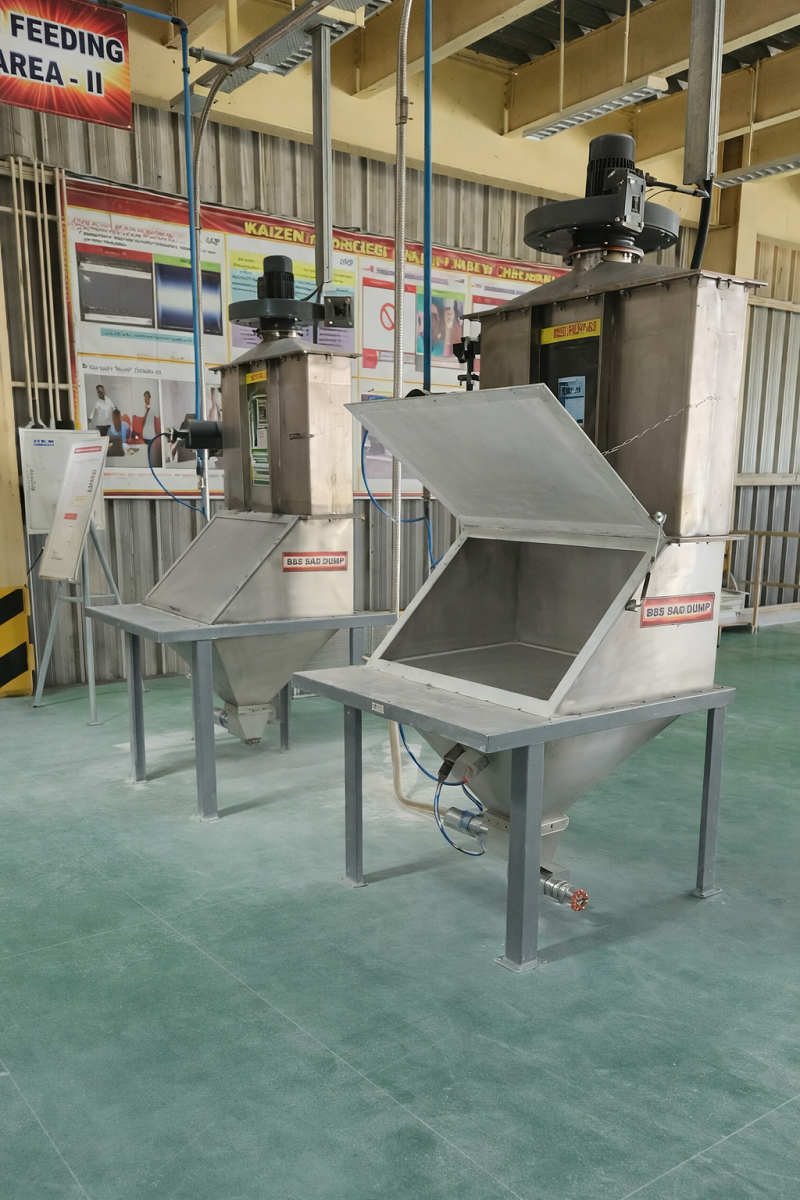

Installations & Applications
Bag dumping stations supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.
