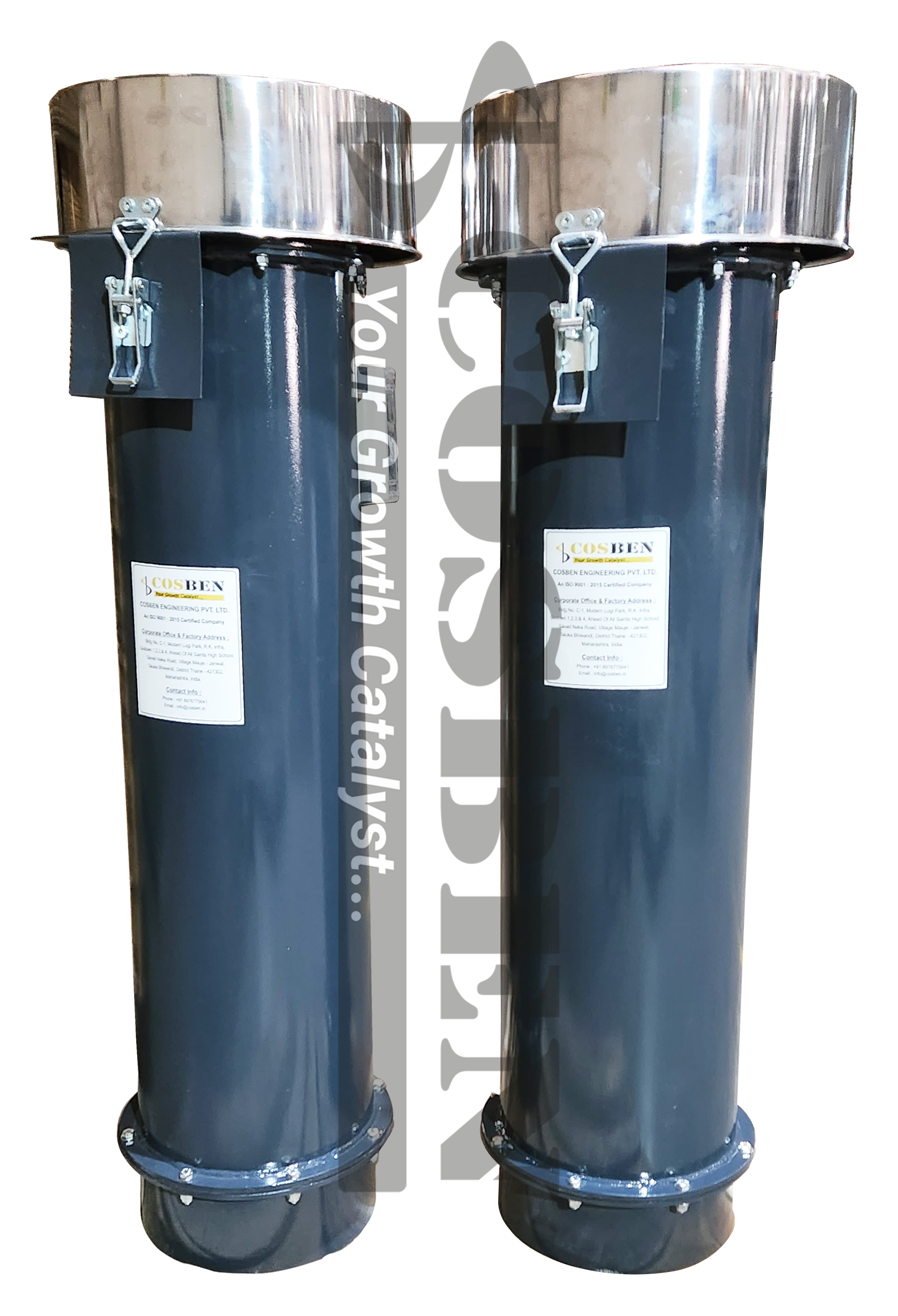

Silo/Bin Mounted Dust Collector (Reverse Air Jet Type)


Cosben's Silo/Bin Mounted Dust Collector (Reverse Air Jet Type) is designed to control dust generated during silo and bin filling operations. Installed directly on top of storage silos or bins, it efficiently separates dust from displaced air, helping maintain cleaner operations while minimizing product loss and environmental emissions.

The system uses an automatic reverse air jet cleaning mechanism to continuously clean the filter elements without interrupting operation, making it suitable for continuous industrial processes handling cement, fly ash, minerals, chemicals, food ingredients, and other bulk powders.

Key Features & Benefits:

  • Efficient dust collection during silo and bin venting
  • Automatic reverse air jet filter cleaning
  • Continuous operation with minimal maintenance
  • Reduces dust emissions and product loss
  • Compact top-mounted design
  • Custom-built for different process requirements

Salient Features

  • Reverse Air Jet cleaning system
  • High-efficiency cartridge filter elements
  • Available with fan or fanless configuration
  • Mild Steel, SS304 & SS316 construction
  • Multiple airflow capacities and filter areas
  • Optional ATEX and explosion protection

Technical Specifications

Product Code Filtration Area (m2) Filtration Volume (M3/HR)
CDC/A/TOP/1/MS 1 72
CDC/A/TOP/1.63/MS 1.63 100
CDC/A/TOP/3/MS 3 200
CDC/A/TOP/4.89/MS 4.89 350
CDC/A/TOP/6/MS 6 400
CDC/A/TOP/9/MS 9 600
CDC/A/TOP/12/MS 12 800
CDC/A/TOP/16/MS 16 1100
CDC/A/TOP/32/MS 32 2300

Download

All the documents related to this product are provided here.

Product Manual

Product Leaflet
