Top Mounted Dust Collector (Vibratory Type)
No compressed air line to the silo roof. A mechanical shaker cleans the cartridges offline, and what comes off goes back into the silo.
No compressed air needed
Mechanical vibratory cleaning
For 25 to 250 tonne silos
Offline cleaning
Mounting
Directly on the silo top
Cleaning
Mechanical vibratory, no compressed air
Silo size
25 to 250 tonne capacity
Recovery
Collected dust discharged back into the silo
Shake the Cartridges Clean, Send the Cement Back Down

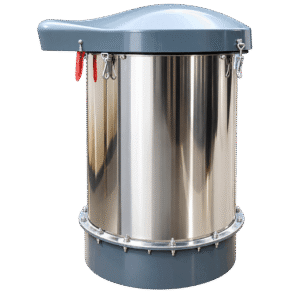

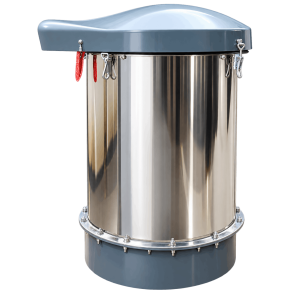

Cosben Engineering’s top mounted dust collector (vibratory type) is designed for effective dust control in silo-based applications, especially in Ready Mix Concrete batching plants. In powder handling systems, dust generation during silo filling is common, and without proper filtration, it leads to material loss and environmental issues. This is where a reliable silo top dust collector becomes important.
This vibratory dust collector works using a mechanical cleaning mechanism that dislodges dust accumulated on cartridges without the need for compressed air. Acting as an industrial dust filter and silo vent filter, it not only controls emissions but also helps recover valuable materials like cement, fly ash, and microsilica, which are discharged back into the silo.
Being an offline unit mounted directly on top of the silo, it ensures stable performance while keeping maintenance straightforward.
At a Glance
Mounting
Cleaning
Silo size
Recovery
Key Features & Benefits
Four points, and two of them are about what you get back rather than what you keep out.
01
Efficient Dust Filtration
Controls dust emissions during silo filling and operation.
02
Vibratory Cleaning Mechanism
Mechanical cleaning of cartridges without compressed air.
03
Material Recovery
Collected dust is discharged back into the silo for reuse.
04
Compact & Practical Design
Designed for easy installation and accessible maintenance.
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Technical Specifications
Baseline configuration. Every unit is finalized to the material and duty of your process.
Model : Internal Screw
Air Volume
Can handle up to 1500 m3/Hr
Filtration Area
23 m2
Dust Particle handling capacity
> 10 microns
Temperature
10° C - 150° C
Outlet Emission
50 mg/nm3
- Vibratory cleaning system: Equipped with a vibratory type cleaning mechanism, ensures consistent cleaning of the filter, maintaining optimal performance over extended usage.
- Compact design with weather and bird proof cover, easy operating height for maintenance as and when required.
- Venting of silos with capacity ranging from 25 to 250 tons.
- Offline cleaning unit.
