Slide Gate Valve
A blade that slides across the outlet to throttle or stop the flow, in square, round or rectangular openings from 100 mm up.
Shape Square, round or rectangular
Size 100 to 400 mm
MOC CS or SS body and blade
EPDM Chute
Opening types
Square (SVQ), round (SVC) and rectangular (SVR)
Size range
100 to 400 mm square and round, 200 and 300 mm rectangular
Body and blade
Carbon steel or stainless steel
Chute
EPDM
Shut the Opening, Whatever Shape the Opening Is
Cosben Engineering’s slide gate valve is used to adjust or completely stop the flow of bulk solid materials inside silos, hoppers, and similar closed systems. In powder handling applications, controlling material flow at the right point is important for smooth operation and maintenance.
Also referred to as a sliding gate valve, this equipment provides a simple and reliable method for isolating or regulating material discharge without affecting the rest of the system.
The valve is available in different opening types – square, rectangular, and round – making it suitable for various installation requirements in bulk material handling systems.
At a Glance
Opening types
Size range
Body and blade
Chute
Key Features & Benefits
Four points on isolating one part of the line without stopping the rest of it.
01
Effective Flow Control
Allows adjustment or complete shut-off of bulk material flow.
02
Dust-Controlled Operation
Helps in managing powder flow within enclosed systems.
03
Flexible Design Options
Available in square, rectangular, and round openings.
04
Simple & Reliable Construction
Designed for consistent performance with minimal complexity.
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Salient Features
Where it is fitted, what openings it comes in, and what it is built to do.
- Suitable for use in silos, hoppers, and closed material handling systems
- Available in multiple opening configurations for different applications
- Designed for reliable operation in powder and bulk material handling
Technical Specifications
Three opening shapes. The shape follows the outlet it has to close, and it is the first thing to settle.
Slide Gate Valve
Square Opening (SVQ)
100 mm to 400 mm
Round Opening (SVC)
100 mm to 400 mm
Rectangular Opening (SVR)
200 mm & 300 mm
Installations & Applications

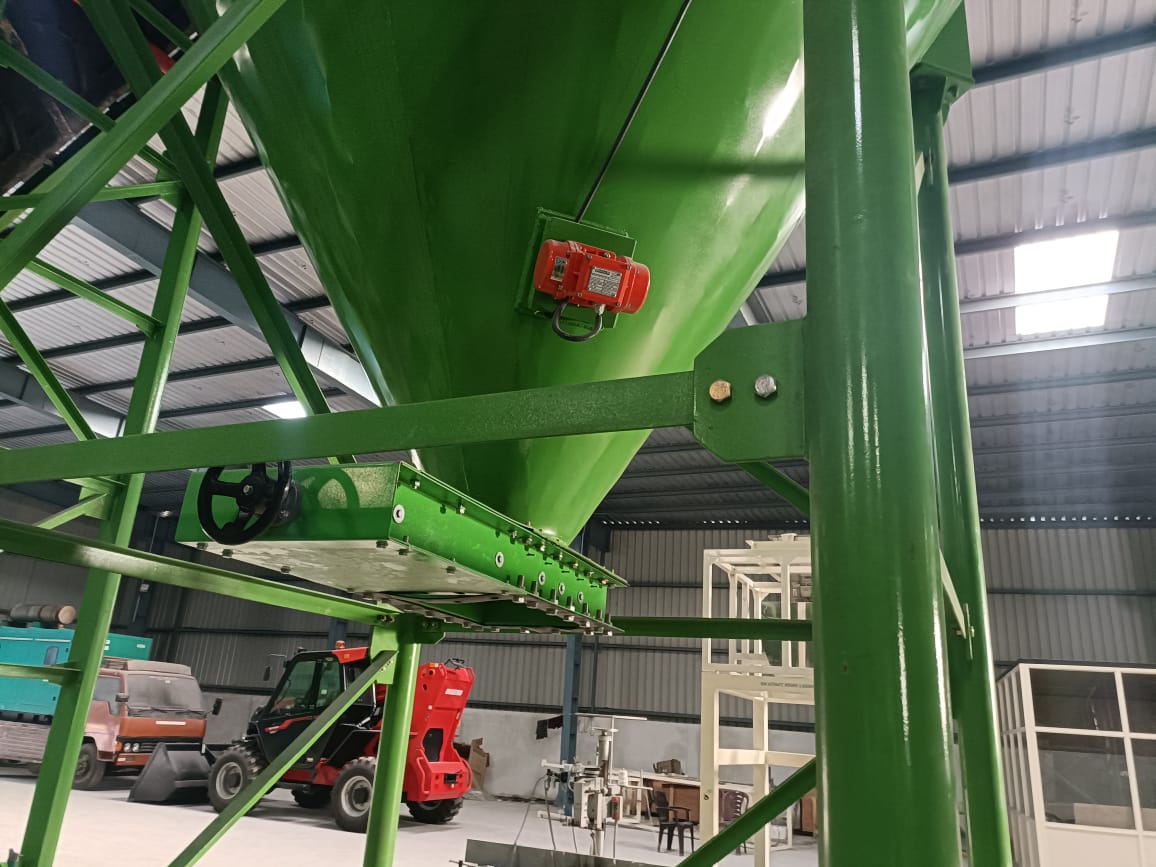

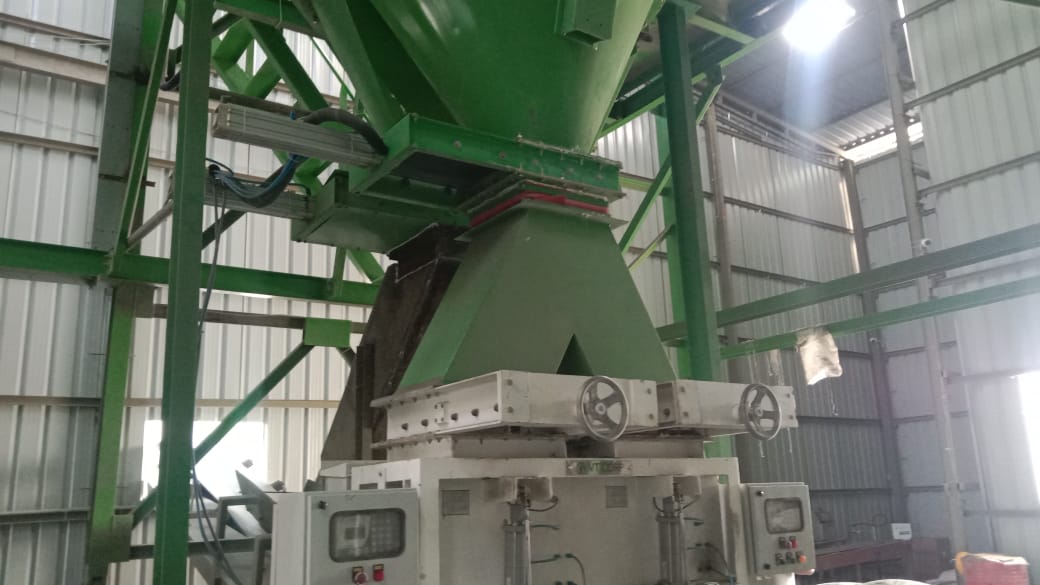

Slide gate valve supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.
