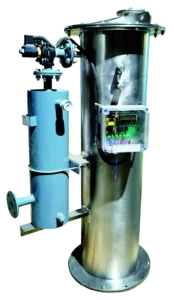

Silo & Bin Mounted Dust Collector (Reverse Air Jet Type)
Displaced air leaves the silo through the cartridges, the pulse cleans them without stopping the fill, and the powder goes back where it came from.
Reverse air jet cleaning
Cartridge elements
Fan or fanless
MS, SS304 or SS316
Mounting
Directly on top of the silo or bin
Cleaning
Automatic reverse air jet, without interrupting operation
Elements
High-efficiency cartridge filters
Construction
Mild steel, SS304 or SS316
On Top of the Silo, Cleaning Itself While You Fill
Cosben’s Silo & Bin Mounted Dust Collector (Reverse Air Jet Type) is designed to control dust generated during silo and bin filling operations. Installed directly on top of storage silos or bins, it efficiently separates dust from displaced air, helping maintain cleaner operations while minimizing product loss and environmental emissions.
The system uses an automatic reverse air jet cleaning mechanism to continuously clean the filter elements without interrupting operation, making it suitable for continuous industrial processes handling cement, fly ash, minerals, chemicals, food ingredients, and other bulk powders.
At a Glance
Mounting
Cleaning
Elements
Construction
Key Features & Benefits
Six points on venting the silo without losing the product through the roof.
01
Efficient dust collection during silo and bin venting
02
Automatic reverse air jet filter cleaning
03
Continuous operation with minimal maintenance
04
Reduces dust emissions and product loss
05
Compact top-mounted design
06
Custom-built for different process requirements
Next Step
Talk to Our Engineers
Share your material, duty and layout and we will size it for your process.
Salient Features
The cleaning system, the elements, and the one decision that changes the unit: fan or no fan.
- Reverse Air Jet cleaning system
- High-efficiency cartridge filter elements
- Available with fan or fanless configuration
- Mild Steel, SS304 & SS316 construction
- Multiple airflow capacities and filter areas
- Optional ATEX and explosion protection
Technical Specifications
| Product Code | Filtration Area (m²) |
Filtration Volume (M³/HR) |
|---|---|---|
| CDC/A/TOP/4.89/MS | 4.89 | 350 |
| CDC/A/GRD/6/MS/1.1kW | 6 | 400 |
| CDC/A/GRD/9/MS/1.5kW | 9 | 600 |
| CDC/A/GRD/12/MS/1.5kW | 12 | 800 |
| CDC/A/GRD/16/MS/2.2kW | 16 | 1100 |
| CDC/A/GRD/32/MS/2.2kW | 32 | 2300 |
| BDC/CL/A/150X10/GRD/11/MS/2.2 Kw | 11 | 1100 |
| BDC/CL/A/150X10/GRD/18/MS/2.2 Kw | 18 | 1800 |
| BDC/CL/A/150X15/GRD/25/MS/2.2 Kw | 25 | 2500 |
| BDC/CL/A/150X20/GRD/34/MS/2.2 Kw | 34 | 3400 |
