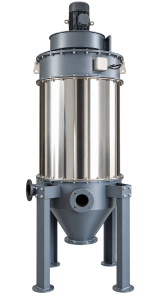

Ground Mounted Dust Collector (Vibratory Type)
Centralized dust control for multi-silo installations, cleaning cartridges mechanically so no compressed air line is needed, with collected dust returned to the process.
Silos Up to 4
Tons · 25 to 250
FIltering Offline cleaning
Cleaning No compressed air
Served
Silos
Up to 4
Tons
Silo
25 to 250
Filtering
High Efficiency
Offline cleaning
Type
Cleaning
No compressed air
Built to Vent Four Silos From One Filter
Cosben Engineering’s ground mounted dust collector (vibratory type) is designed for centralized dust control in applications where more than one silo needs to be handled. In bulk material handling plants, especially where multiple silos operate together, using a single ground mounted dust collector helps simplify dust management while keeping the system cost-effective.
This vibratory dust collector is installed at ground level and can be connected to multiple silos with asynchronous or cyclic dedusting operation. Acting as a practical conveyor dust collector or transfer point dust collector, it helps control emissions while recovering valuable powder materials like cement, fly ash, and microsilica. The collected material is discharged into a hopper below the unit for reuse.
The system uses a mechanical cleaning mechanism that dislodges dust from cartridges without compressed air. As an industrial vibratory dust collector, it is designed for offline cleaning and is used for venting one silo at a time
At a Glance
Silos served
Silo capacity
Recovery
Recovery
Key Features & Benefits
Why plants without a compressed air line specify the vibratory collector.
01
Centralized Dust Control
Supports dust collection from multiple silos through a single system.
02
Vibratory Cleaning Mechanism
Mechanical cleaning of cartridges without the need for compressed air.
03
Material Recovery System
Material Recovery System
04
Cost-Effective Solution
Reduces the need for individual dust collectors on each silo.
Next Step
Talk to Our Engineers
Share your bag size, material and layout for a plant-specific recommendation.
Salient Features
One filter body at ground level, cleaned mechanically rather than pneumatically.
- Vibratory cleaning system: Equipped with a vibratory type cleaning mechanism, ensures consistent cleaning of the filter, maintaining optimal performance over extended usage.
- Can connect up to 4 silos.
- Venting of silos with capacity ranging from 25 to 250 tons.
- Offline cleaning unit.
Technical Specifications
Baseline configuration. Airflow is confirmed against the number of silos and the duty.
Model : Ground Mounted Dust Collector (Vibratory Type)
Air Volume
Can handle up to 1500 m3/Hr
Filtration Area
23 m2
Dust Particle handling capacity
> 10 microns
Temperature
10° C - 150° C
Outlet Emission
50 mg/nm3
Installations & Applications

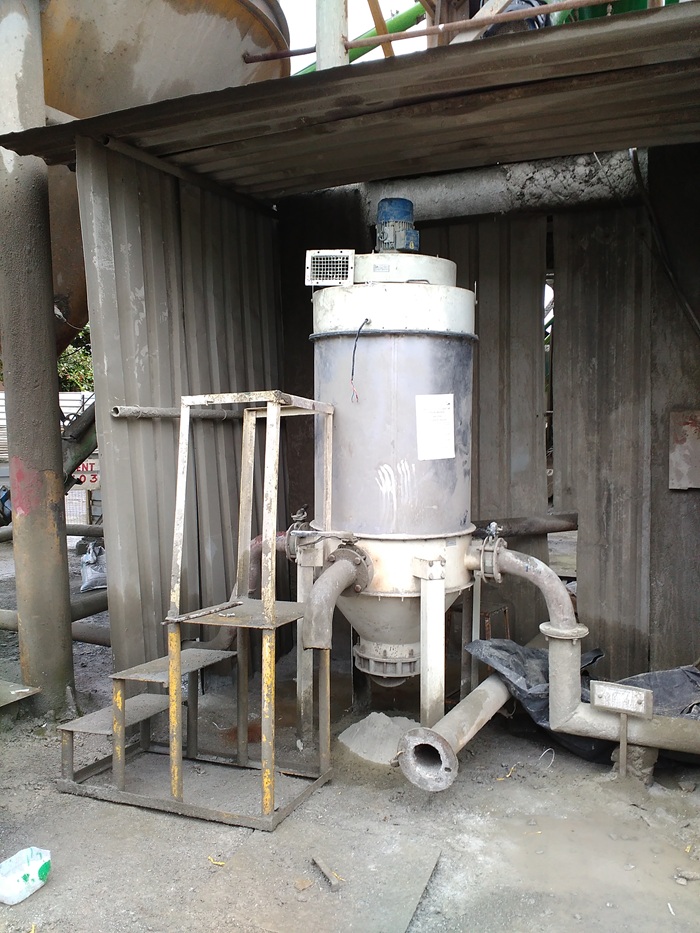

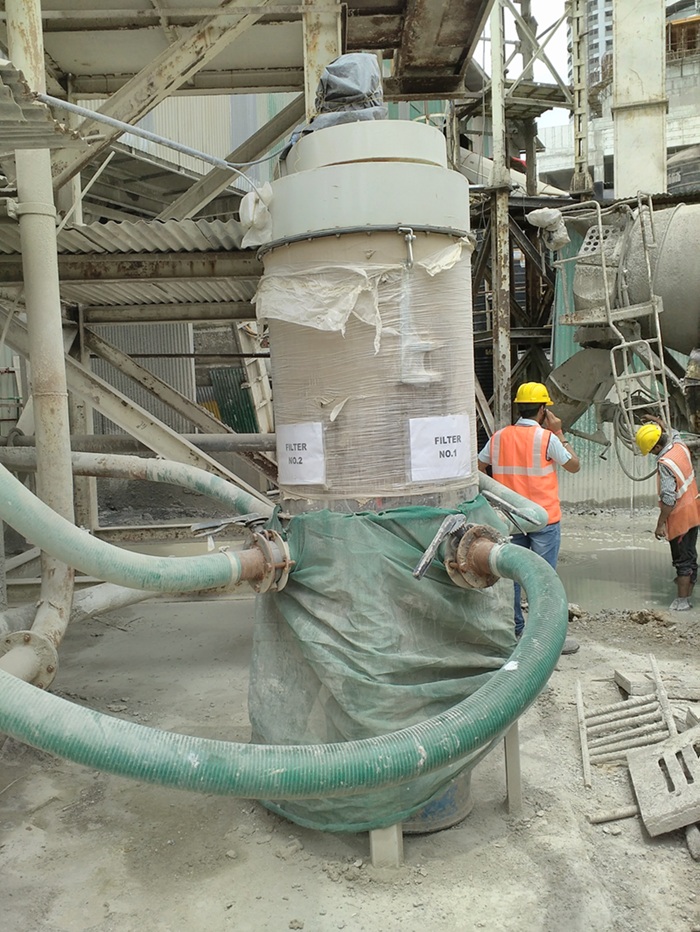

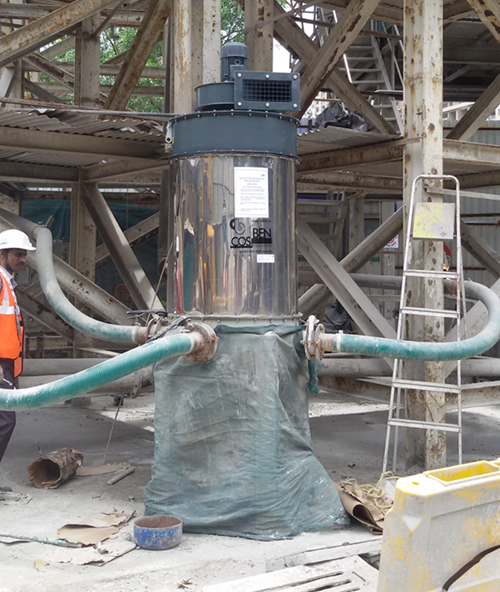

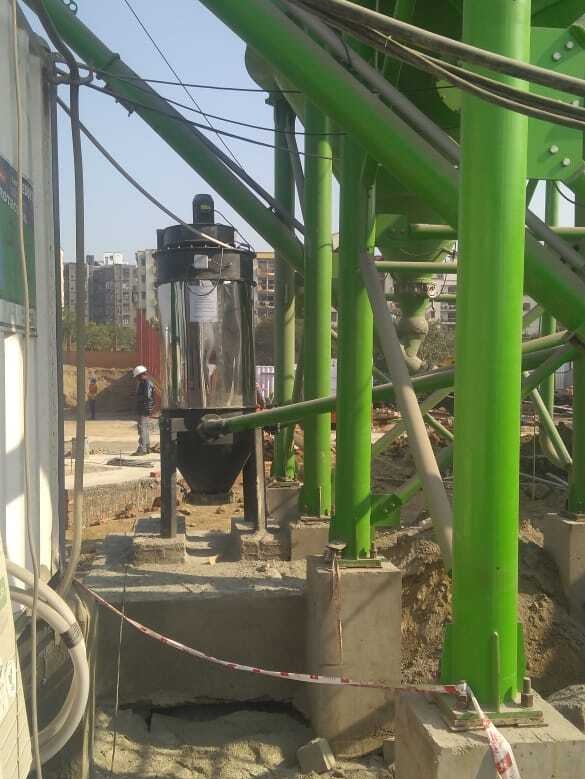

Ground mounted dust collector (vibratory type) supplied and commissioned by Cosben Engineering, shown in the plant conditions they are built for.
